| Field of View: | 24° |
| Magnification: | ~ 1:1 |
| Spectral Sensitivity: | 350-1350 nm |
| Mounted Lens: | 25mm, ƒ/1.6 C-mount lens |
| Additional Lens: | 50mm, ƒ/1.8 C-mount lens |
| Standard Focal Range: | 200mm, (7.8") to infinity (25mm lens) |
| Focal Range: | 1m - infinity (39.37") (50mm lens) |
| Focal Range w/CU lens | ~ 110mm - 250mm (4.3 - 9.8") (25mm) |
| Regions Displayed: | Near UV, Visible, Near-IR |
| Peak Sensitivity: | 800 nm |
| Resolution: | 40 lp/mm |
| Display: | P20 Phosphor |
| Power: | (1) standard "C" cell alkaline battery |
| Battery Life: | >98-hours continuous |
| Sensitivity Test: | See 1350 nm, 400µW LED @ 8-ft. |
| Operating Temperature: | -32° to 46°C, (-25 to 115°F) |

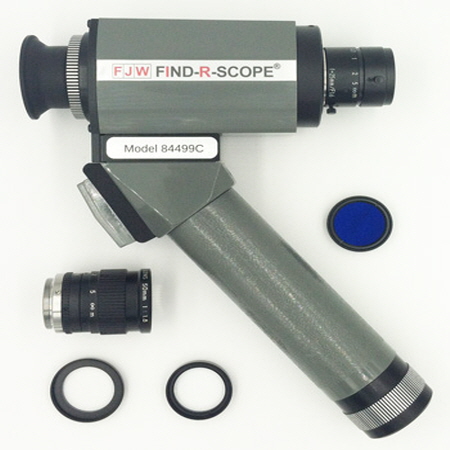

FIND-R-SCOPE Infrared Viewer 2X Plus Kit, Includes the following items: | 84499C, 350-1350nm Hand-Held Infrared Viewer (with 25mm lens) | 85432, 50mm Objective Lens in addition to standard 25mm lens | LP830-30.5, Visible Blocking Filter | CU400-27, Close-Up Lens (for use with 25mm lens) SU27-30.5 Step-UP Ring
|
|
| Field of View: | 24° |
| Magnification: | ~ 1:1 |
| Spectral Sensitivity: | 350-1350 nm |
| Mounted Lens: | 25mm, ƒ/1.6 C-mount lens |
| Additional Lens: | 50mm, ƒ/1.8 C-mount lens |
| Standard Focal Range: | 200mm, (7.8") to infinity (25mm lens) |
| Focal Range: | 1m - infinity (39.37") (50mm lens) |
| Focal Range w/CU lens | ~ 110mm - 250mm (4.3 - 9.8") (25mm) |
| Regions Displayed: | Near UV, Visible, Near-IR |
| Peak Sensitivity: | 800 nm |
| Resolution: | 40 lp/mm |
| Display: | P20 Phosphor |
| Power: | (1) standard "C" cell alkaline battery |
| Battery Life: | >98-hours continuous |
| Sensitivity Test: | See 1350 nm, 400µW LED @ 8-ft. |
| Operating Temperature: | -32° to 46°C, (-25 to 115°F) |
FIND-R-SCOPE Infrared Viewer 2X Plus Kit, Includes the following items: | 84499C, 350-1350nm Hand-Held Infrared Viewer (with 25mm lens) | 85432, 50mm Objective Lens in addition to standard 25mm lens | LP830-30.5, Visible Blocking Filter | CU400-27, Close-Up Lens (for use with 25mm lens) SU27-30.5 Step-UP Ring
|
|
