| Field of View: | 24° |
| Magnification: | ~ 1:1 |
| Spectral Sensitivity: | Extended 350-1550 nm |
| Mounted Lens: | 25mm, ƒ/1.6 C-mount lens |
| Additional Lens: | 50mm, ƒ/1.8 C-mount lens |
| Standard Focal Range: | 200mm, (7.8") to infinity (25mm lens) |
| Focal Range: | 1m - infinity (39.37") (50mm lens) |
| Focal Range w/CU lens | ~ 110mm - 250mm (4.3 - 9.8") (25mm) |
| Regions Displayed: | Near UV, Visible, Near-IR |
| Peak Sensitivity: | 800 nm |
| Resolution: | 40 lp/mm |
| Display: | P20 Phosphor |
| Power: | (1) standard "C" cell alkaline battery |
| Battery Life: | >98-hours continuous |
| Sensitivity Test: | See 1550nm, 400µW LED @ 2m |
| Operating Temperature: | -32° to 46°C, (-25 to 115°F) |

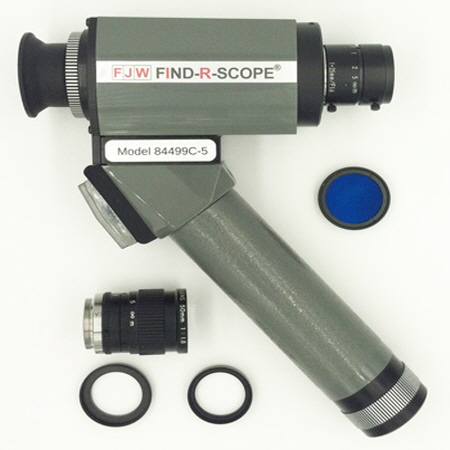

FIND-R-SCOPE Infrared Viewer -52X Plus Kit, Includes the following items: | 84499C-5, Extended 350-1550nm Hand-Held Infrared Viewer (with 25mm lens) | 85432, 50mm Objective Lens in addition to standard 25mm lens | LP830-30.5, Visible Blocking Filter | CU400-27, Close-Up Lens (for use with 25mm lens) | SU27-30.5, 27 to 30.5 Step-UP Ring
- Hand-Held
- Self-Contained
- 25mm f/1.6 C-Mount Lens
- 50mm f/1.8 C-Mount Lens
- User Adjustable Eyepiece
- Includes Visible Blocking Filter
- Includes CU400-27 Close-Up Lens
- Includes 27mm to 30.5mm Step-Up Ring
| - Native C-Mount Capability
- Accepts Optional Filters
- Accepts Optional Lenses
- Relay Lens for Video Out. (Option)
- Standard Tripod Mount
- Includes Battery
- Includes Hard Side Case
- 12-Month Limited Warranty
|
| Field of View: | 24° |
| Magnification: | ~ 1:1 |
| Spectral Sensitivity: | Extended 350-1550 nm |
| Mounted Lens: | 25mm, ƒ/1.6 C-mount lens |
| Additional Lens: | 50mm, ƒ/1.8 C-mount lens |
| Standard Focal Range: | 200mm, (7.8") to infinity (25mm lens) |
| Focal Range: | 1m - infinity (39.37") (50mm lens) |
| Focal Range w/CU lens | ~ 110mm - 250mm (4.3 - 9.8") (25mm) |
| Regions Displayed: | Near UV, Visible, Near-IR |
| Peak Sensitivity: | 800 nm |
| Resolution: | 40 lp/mm |
| Display: | P20 Phosphor |
| Power: | (1) standard "C" cell alkaline battery |
| Battery Life: | >98-hours continuous |
| Sensitivity Test: | See 1550nm, 400µW LED @ 2m |
| Operating Temperature: | -32° to 46°C, (-25 to 115°F) |
FIND-R-SCOPE Infrared Viewer -52X Plus Kit, Includes the following items: | 84499C-5, Extended 350-1550nm Hand-Held Infrared Viewer (with 25mm lens) | 85432, 50mm Objective Lens in addition to standard 25mm lens | LP830-30.5, Visible Blocking Filter | CU400-27, Close-Up Lens (for use with 25mm lens) | SU27-30.5, 27 to 30.5 Step-UP Ring
- Hand-Held
- Self-Contained
- 25mm f/1.6 C-Mount Lens
- 50mm f/1.8 C-Mount Lens
- User Adjustable Eyepiece
- Includes Visible Blocking Filter
- Includes CU400-27 Close-Up Lens
- Includes 27mm to 30.5mm Step-Up Ring
| - Native C-Mount Capability
- Accepts Optional Filters
- Accepts Optional Lenses
- Relay Lens for Video Out. (Option)
- Standard Tripod Mount
- Includes Battery
- Includes Hard Side Case
- 12-Month Limited Warranty
|
