| Field of View: | 24° |
| Magnification: | ~ 1:1 |
| Spectral Sensitivity: | Extended 350-1550 nm |
| Lens: | 25mm, ƒ/1.6 C-mount lens |
| Standard Focus Range: | 200mm, (7.8") to infinity |
| Regions Displayed: | Near UV, Visible, Near-IR |
| Peak Sensitivity: | 800 nm |
| Resolution: | 40 lp/mm |
| Display: | P20 Phosphor |
| Power: | (1) standard "C" cell alkaline battery |
| Battery Life: | >98-hours continuous |
| Sensitivity Test: | See 1550nm, 400µW LED @ 2m |
| Operating Temperature: | -32° to 46°C, (-25 to 115°F) |
Printer Friendly Version

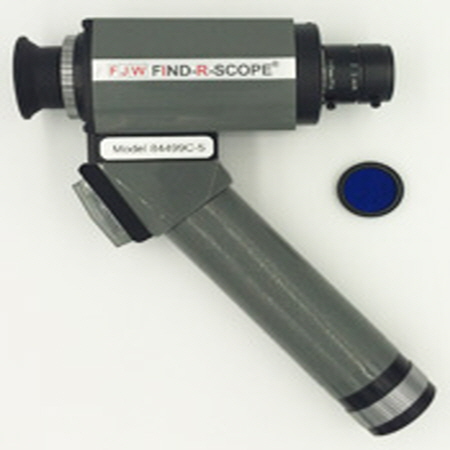

FIND-R-SCOPE Infrared Viewer Includes the following items: | 84499C-5, Extended 350-1550nm Hand-Held Infrared Viewer | LP830-27, Visible Blocking Filter
|
|
| Field of View: | 24° |
| Magnification: | ~ 1:1 |
| Spectral Sensitivity: | Extended 350-1550 nm |
| Lens: | 25mm, ƒ/1.6 C-mount lens |
| Standard Focus Range: | 200mm, (7.8") to infinity |
| Regions Displayed: | Near UV, Visible, Near-IR |
| Peak Sensitivity: | 800 nm |
| Resolution: | 40 lp/mm |
| Display: | P20 Phosphor |
| Power: | (1) standard "C" cell alkaline battery |
| Battery Life: | >98-hours continuous |
| Sensitivity Test: | See 1550nm, 400µW LED @ 2m |
| Operating Temperature: | -32° to 46°C, (-25 to 115°F) |
Printer Friendly Version
FIND-R-SCOPE Infrared Viewer Includes the following items: | 84499C-5, Extended 350-1550nm Hand-Held Infrared Viewer | LP830-27, Visible Blocking Filter
|
|
