Orbit™ Bare Fiber Coning and Chisel System
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Orbit™ enhances NOVA™'s bare fiber processing with conical and chisel tip shaping. Unique fiber tip geometries can be formed for lensing, sensing and light guiding applications.

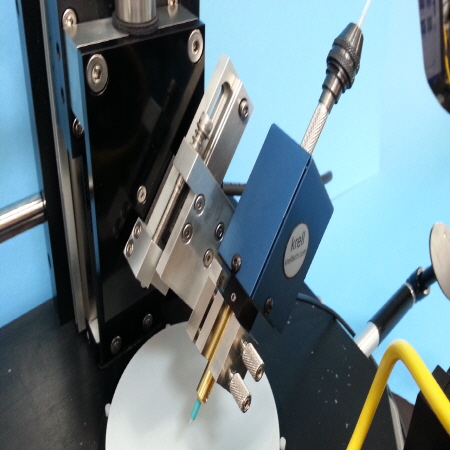

The fiber rotation module can be mounted on standard NOVA™ variable angle and waveguide workholders. Fiber "spin" speed is user adjustable, and can be set for continual rotation or the unique "360 auto-reverse" motion that prevent fiber twisting and torquing.
All variables are entered and selected via a touchscreen on the Orbit™ controller. When combined with NOVA™ Auto-Angle Workholders, Orbit™ precisely positions the polishing fixture at the designed angle on a repeatable basis.
Related Q&A:
April 15, 2020, 3:22 p.m.
Q
Can this system be used to create just an angled flat facet on a fiber tip?
A
Yes. The standard angle range is 0 degrees (flat tip) to 50 degrees referenced off the vertical.
April 2, 2020, 6:20 p.m.
Q
Is this coning device capable of creating a cone with a flat tip on up to a 2,000um POF?
A
Yes
April 2, 2020, 5:42 p.m.
Q
Is this coning device capable of creating a cone with a flat tip on up to a 2,000um POF?
A
Yes, this geometry can be formed on a tip of a fiber using the Orbit system.
