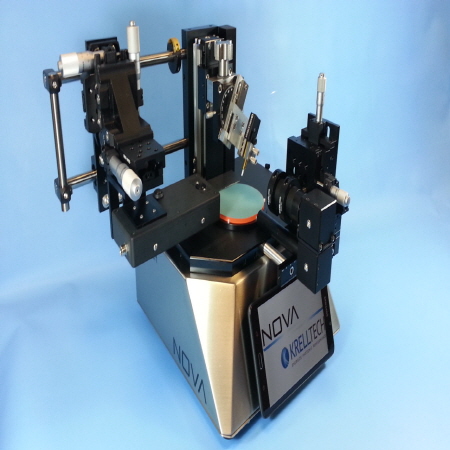

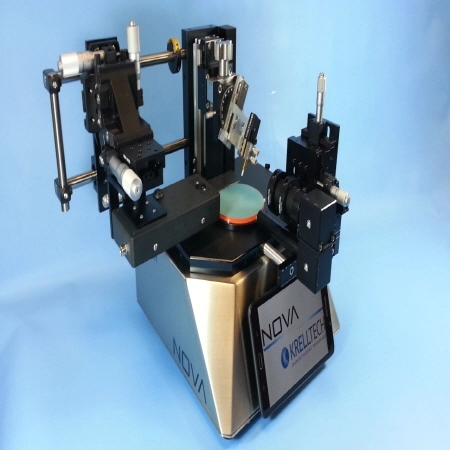

NOVA™ Bare Fiber Polishing System
⠀⠀⠀⠀⠀⠀⠀⠀⠀
NOVA™'s flexible processing platform allows it to be configured for polishing bare fibers. Fibers can be polished at variable angles from 0 to 50 degrees using specialized workholders and adapters. A variety of fiber types from standard singlemode to PM, and sapphire to PCF can be processed. A quick swap-out of adapters allow the polishing of fiber diameters from 80um to >3mm.
Optional video inspection systems monitor the polishing process and inspect the polished surface directly in NOVA™. In-line viewing minimizes material handling and is a means to confirm endface geometry before removing the fiber from the machine.
Conical and chisel fiber tips can also be formed using the Orbit™ Shaping Module (see below).
Related Q&A:
March 24, 2020, 6:38 p.m.
Q
Can I buy the inspection equipment at a later date?
A
Yes, if you initially purchase just the base polisher, you can upgrade with the inspection modules at a future date.
March 23, 2020, 6:05 p.m.
Q
I have a Krell Trig Polisher (see attached). What is the difference between Trig and NOVA?
A
Basically, NOVA is automated and programmable, whereas Trig is manually operated.
Feb. 4, 2020, 10:52 p.m.
Q
How many bare fibers can be polished simultaneously by NOVA?
A
Up to 8.
