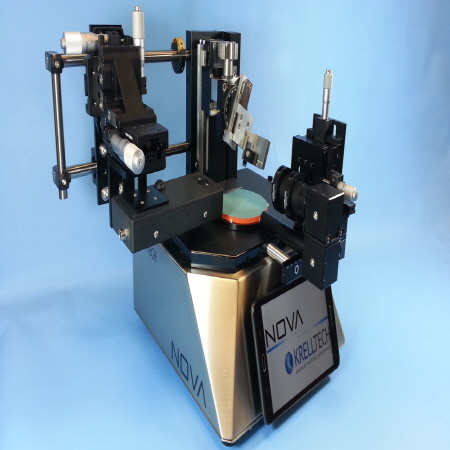

NOVA™ Waveguide & Array Polishing System
⠀⠀⠀⠀⠀⠀⠀⠀⠀
NOVA™'s flexible processing platform allows it to be configured for polishing waveguides, optical chips, PLCs and fiber arrays. Polished endface angles can be varied from 0 to 50 degrees using either manual or automated workholder stages. NOVA™'s component mounting plate is adjustable for varying edge widths and thickness.
Optional video inspection systems monitor the polishing process and inspect the polished surface directly in NOVA™. In-line viewing minimizes material handling and is a means to confirm endface geometry before removing the component from the machine.
Related Q&A:
April 2, 2020, 4:12 p.m.
Q
What size Waveguides can the NOVA polish?
A
Standard waveguide fixtures are available for chip widths from 2mm to 50mm, and thickness from 0.5mm to >5mm. Custom fixtures can be designed and fabricated upon request.
Feb. 7, 2020, 3:36 p.m.
Q
Can I upgrade to video systems at a later date?
A
Yes. Both the profiling video system and the surface inspection module can be added at a later date.
