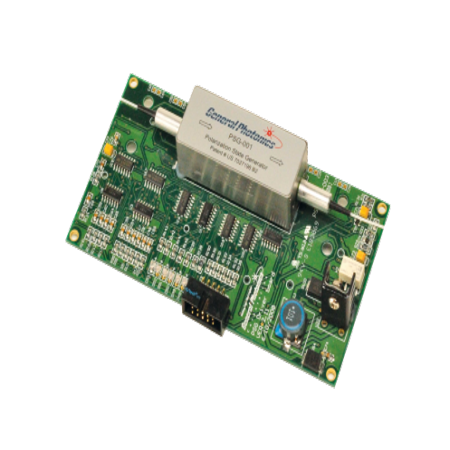

PSG-001 Polarization State Generator
⠀⠀⠀⠀⠀⠀⠀⠀⠀
The PSG-001 polarization state generator module generates 6 states of polarization (SOP): (−45°, 0°, 45°, 90°, RHC & LHC).
PRODUCT DESCRIPTION
The PSG-001 uses a design based on magneto-optic rotators to quickly and repeatably generate the 6 Poincaré sphere pole point polarization states. It is a compact module suitable for integration into test instruments or systems that use Mueller or Jones matrix measurements. The output state of polarization is controlled via a 6-bit TTL signal.
Key Features
Digitally switched SOP
Switching speed <250µs
Repeatable SOP generation
Compact
