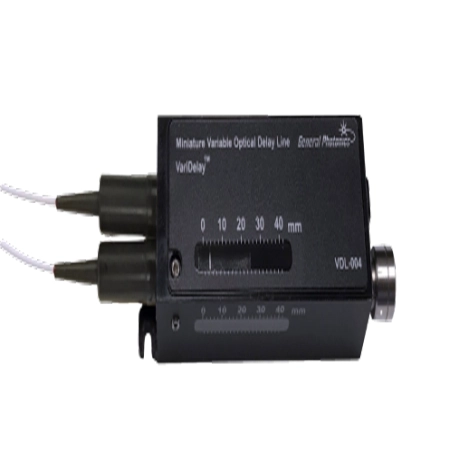

VDL-004 Miniature Variable Optical Delay Line
⠀⠀⠀⠀⠀⠀⠀⠀⠀
The VDL-004 manual variable optical delay line is a small, short range delay line that allows a user to adjust the delay to a desired position and then lock it in place.
PRODUCT DESCRIPTION
The VDL-004 is a fiber coupled delay line with the delay adjustment path in free space. The delay is adjusted by manually turning a dial on one end of the device, and the position is read from a scale on the front. The device includes a locking screw to lock the position setting. This device offers continuous control with high precision, zero backlash, and good thermal stability. Convenient mounting brackets allow mounting in any orientation, as well as easy integration of multiple units on a base plate to form an array.
The delay line is available with either single mode or PM fiber pigtails.
Key Features
- Compact
- Zero backlash
- Thermally stable
- Position locking mechanism
- Can be mounted in any orientation
