MDL-002 Motorized Optical Delay Line Module
⠀⠀⠀⠀⠀⠀⠀⠀⠀
The MDL-002 family of motorized variable optical delay lines provides optical path length adjustment of up to 560 ps in single-pass configuration. Driven by a DC motor with an integrated encoder, the MDL-002 has a delay resolution of less than 0.3µm (1 fs).
PRODUCT DESCRIPTION

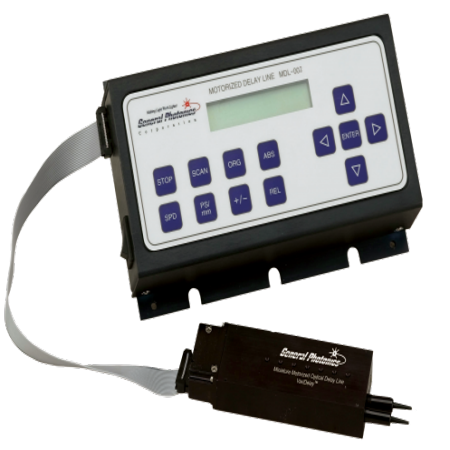

The MDL-002 is a fiber coupled delay line with the delay adjustment path in free space. It is driven by a DC motor with integrated encoder, and combines delay ranges of up to 560 ps single pass with scan speeds of up to 256 ps/s. Three configurations of the MDL-002 are available: 1) an integrated unit for use on the bench, 2) a two-piece unit with the optical head and control unit separated for installation into customer equipment, and 3) an OEM version that replaces the control unit with a miniature controller board.
All three versions can be remote controlled via RS-232. The standard controller unit also has an integrated keypad and LCD display. The delay line is available with either single mode or PM fiber pigtails.
Key Features
- Long delay range
- Multiple controller configurations
- Scan speed up to 256 ps/s.
- Compact
