Dual logarithmic photodetector
⠀⠀⠀⠀⠀⠀⠀⠀⠀

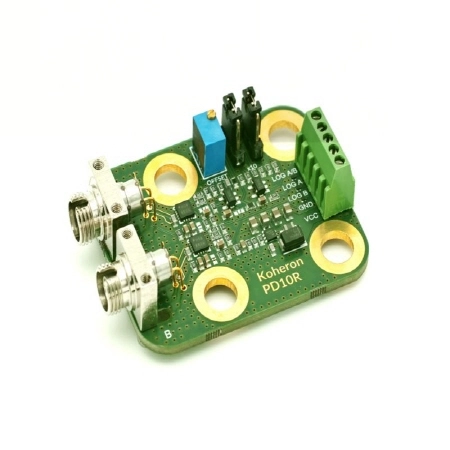

Koheron PD10R is a dual logarithmic photodetector for general purpose optical power measurements. In addition to two analog outputs log(A) and log(B), the PD10R gives the log-ratio log(A/B) with an adjustable offset and two gain settings (x1 and x10). The PD10R provides a fully-analog solution for direct absorption measurement in spectroscopy setups.
Specifications
| Small signal bandwidth | 1.2 MHz at 3 dB (for input current > 100 µA) |
| Logarithmic slope | 300 mV / decade |
| Supply voltage | 3.3 - 13 V |
| Dimensions | 38 mm x 53 mm x 12 mm |
| InGaAs photodiodes | |
| Wavelength range | 900 - 1700 nm |
| Optical input power | -67 to 7 dBm (0 dBm = 1 mW) |
| Photodiode connector | FC |
| Photodiode active diameter | 300 µm |
| Photodiode peak responsivity | 0.90 A / W |
| Operating temperature | 0 °C - 50 °C |
