High-gain balanced photodetector

⠀⠀⠀⠀⠀⠀⠀⠀⠀

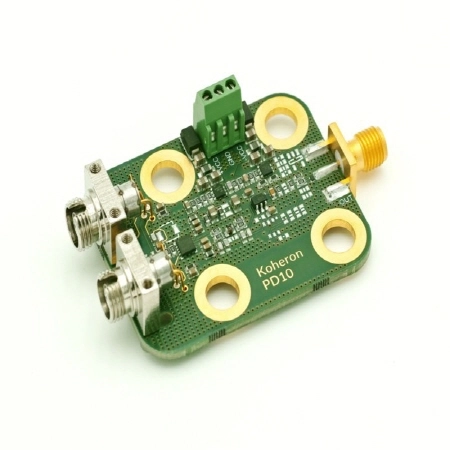

Koheron PD10B is a balanced photodetector with 80 kV/A transimpedance gain and 8 MHz bandwidth. With a noise-equivalent power spectral density of only 0.8 pW / √Hz at 1 MHz, the PD10B is a perfect alternative to the PD100B balanced photodetector for those who require a higher gain.

Wavelength range	900 - 1700 nm	900 - 1700 nm
Small signal bandwidth	0 - 8 MHz at 3 dB	0 - 50 MHz at 3 dB
Coupling	DC	DC
Optical input power	0 - 1.5 mW	0 - 1.5 mW
Photodiode peak responsivity	0.90 A / W	0.90 A / W
Power supply (positive)	5.5 - 9 VDC	5.5 - 9 VDC
Power supply (negative)	-9 to -5.5 VDC	-9 to -5.5 VDC
Transimpedance gain	80 kV / A	3 kV / A
Output voltage range	±3.6 V	±3.6 V
Noise Equivalent Power	0.8 pW / √Hz (at 1 MHz)	3.5 pW / √Hz (at 10 MHz)
Output impedance	50 Ω	50 Ω
Outside Dimensions	63 mm x 38 mm x 14 mm	63 mm x 38 mm x 14 mm
Photodiode connector	FC	FC
Photodiode active diameter	300 µm	300 µm
Output	SMA	SMA
Mechanical details	Compatible with M6 metric breadboards (25 mm spacing)	Compatible with M6 metric breadboards (25 mm spacing)
Operating temperature	0 °C - 50 °C	0 °C - 50 °C
