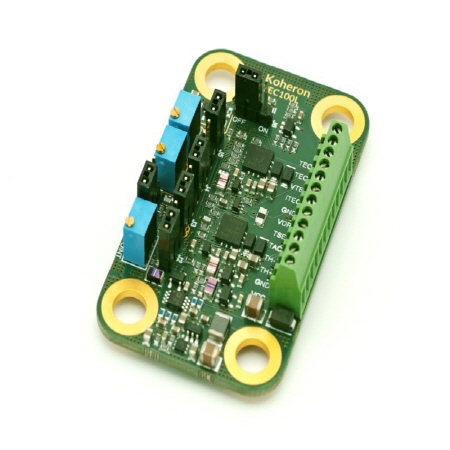

Linear temperature controller
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Koheron TEC100L is a compact, high stability temperature controller. It features a high-precision analog front-end, adjustable PID gains and can drive up to 1 A current.
위치확인
위치확인
042 825 7084
대전 유성구 온천로 59 (봉명동, 동아벤처타워)( 59, Oncheon-ro, Yuseong-gu, Daejeon, Korea )
동아벤처타워 816호
Specifications
TEC100L-50
| Current | -1.15 to +1.15 A |
| Adjustment range | 5 - 20 kΩ (40°C - 10°C) |
| Supply voltage | 5 V (4.5 V - 5.5 V, 1.3 A) |
| Compliance voltage | 4.5 V at 1 A |
| Temperature coefficient | 0.002 °C/°C |
| 24h stability | 0.005 °C |
| Quiescent current | 3 mA |
| Outside Dimensions | 63 mm x 38 mm x 12 mm |
Specifications
TEC100L-50
| Current | -1.15 to +1.15 A |
| Adjustment range | 5 - 20 kΩ (40°C - 10°C) |
| Supply voltage | 5 V (4.5 V - 5.5 V, 1.3 A) |
| Compliance voltage | 4.5 V at 1 A |
| Temperature coefficient | 0.002 °C/°C |
| 24h stability | 0.005 °C |
| Quiescent current | 3 mA |
| Outside Dimensions | 63 mm x 38 mm x 12 mm |
