Quad-channel bipolar voltage source
⠀⠀⠀⠀⠀⠀⠀⠀⠀

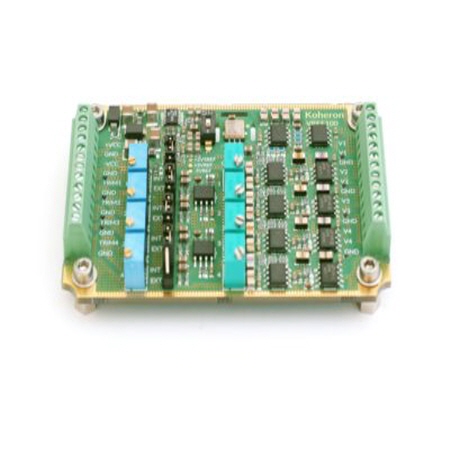

Koheron VREF100 is a quad-channel voltage source that can be adjusted between -5 V and +5 V. It can source or sink up to 40 mA on each channel. Each channel has a coarse and a fine trimmer with a settability of 20 µV. Thanks to its low wideband noise and high stability, the VREF100 can be used to bias sensitive devices such as VCOs or Mach-Zehnder modulators.
Specifications
VREF100-50
| Number of channels | 4 |
| Output voltage range | ±5 V |
| Current driving capability | 40 mA (source or sink) |
| Voltage noise density (10 kHz) | 1.3 nV/√Hz |
| RMS noise (10 Hz - 1 MHz) | 2 µV |
| 24 h stability | 50 µV |
| Load regulation | 35 µV/mA |
| Temperature coefficient | 5 ppm/°C |
| Fine ajustment range | ±50 mV |
| Other | |
| Outside Dimensions | 75 mm x 50 mm x 12 mm |
| Weight | 34 g |
| Supply voltage | ±9 V |
| Operating temperature | 0 °C - 40 °C |
