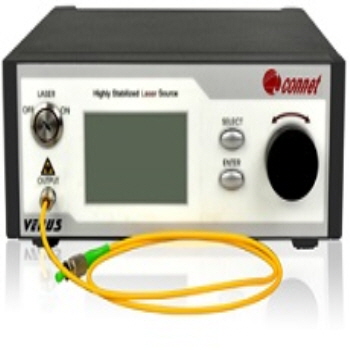

SLD Broadband Light Source
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Features：
• High power and wide spectrum
• Multiple safety protection
• High stability and high reliability
• LCD display
• High precision ATC and ACC control circuit
Applications：
• Test and measurement
• Optical fiber sensor system
• Fiber optic gyroscope
• Spectrum Analysis
• Other lab application
Product Description:
The VENUS series high-power SLD (SLED) light source of Connet Laser is a high-stability source designed for scientific research and industrial production with the high-power, broadband SLD (SLED) module being internally installed. Aiming at special characteristics of SLD (SLED) laser, the SLD (SLED) light source of Connet Laser employs the specialized protective measurement on circuit design and the optimized optical path processing in order to protect the laser from the reflected light and the surge of current or voltage, thus ensuring that the light source can be operated safely and stably in a long time.
The VENUS series SLD (SLED) source of Connet Laser covers different intervals within the scope of 800~1650nm with the typical wavelengths of 840nm, 980nm,1060nm, 1310nm, and 1550nm, etc. There are plenty of choices for output power and spectral width. In addition, Connet Laser can offer the low polarization ratio SLD source to satisfy demands for different applications according to the requirement of the user.
Specifications：
Parameter | Unit | Specifications | ||
Min | Typ. | Max | ||
Part No. |
| VSLS-XXXX-B | ||
Center Wavelength1 | nm | 840nm, 980nm, 1060nm, 1310nm, 1550nm | ||
Output Power2 | mW | >1.5 | ||
Spectral Width (FWHM)3 | nm | >20 | ||
Spectral Modulation | dB | <0.45 | ||
Output Isolation4 | dB | 30 | ||
| Stability of Output Power (15min)5 | % | <1 | ||
Stability of Output Power (8h)5 | % | <3 | ||
Output Power Operating Range |
| Coarse / Fine | ||
Operating Voltage | VAC | 170 | 220 | 260 |
Power Consumption | W | - | - | 5 |
Operating Temperature | ℃ | 0 | - | 50 |
Storage Temperature | ℃ | -40 | - | 85 |
Output Fiber Type |
| Single Mode Fiber (PM fiber optional) | ||
Output Fiber Length | m | > 1 | ||
Output Fiber Connector |
| FC/APC (other options available) | ||
Dimensions | mm | 270(L)×235(W)×105(H) | ||
1. Center wavelength is optional;
2. Output power is optional depending on wavelength;
3. Spectrum width is optional depending on wavelength;
4. Output isolation is related to wavelength;
5. The output power stability is measured under 25℃, after 30 minutes' warm-up.
840nm SLD Broadband Light Sources
Part No. | Output power(mW) | FWHM(nm) | Part No. | Output power(mW) | FWHM(nm) |
VSLS-840-B-1 | 1 | 50 | VSLS-840-B-15 | 15 | 50 |
VSLS-840-B-3 | 3 | 20 | VSLS-840-B-20 | 20 | 18 |
VSLS-840-B-7.5 | 7.5 | 50 | VSLS-840-B-25 | 25 | 50 |
VSLS-840-B-10 | 10 | 18 | VSLS-840-B-30 | 30 | 14 |
980nm SLD Broadband Light Sources
Part No. | Output power(mW) | FWHM(nm) | Part No. | Output power(mW) | FWHM(nm) |
VSLS-980-B-2 | 2 | 35 | VSLS-980-B-3 | 3 | 20 |
1060nm SLD Broadband Light Sources
Part No. | Output power(mW) | FWHM(nm) | Part No. | Output power(mW) | FWHM(nm) |
VSLS-1060-B-1.5 | 1.5 | 70 | VSLS-1060-B-10 | 10 | 70 |
VSLS-1060-B-5 | 5 | 35 | VSLS-1060-B-20 | 20 | 35 |
VSLS-1060-B-5 | 5 | 70 | VSLS-1060-B-20 | 20 | 70 |
VSLS-1060-B-10 | 10 | 30 | VSLS-1060-B-30 | 30 | 35 |
1310nm SLD Broadband Light Sources
Part No. | Output power(mW) | FWHM(nm) | Part No. | Output power(mW) | FWHM(nm) |
VSLS-1310-B-1 | 1 | 43 | VSLS-1310-B-18 | 18 | 42 |
VSLS-1310-B-2 | 2 | 45 | VSLS-1310-B-20 | 20 | 30 |
VSLS-1310-B-5 | 5 | 50 | VSLS-1310-B-20 | 20 | 56 |
VSLS-1310-B-8 | 8 | 75 | VSLS-1310-B-30 | 30 | 58 |
VSLS-1310-B-10 | 10 | 30 | VSLS-1310-B-40 | 40 | 43 |
VSLS-1310-B-15 | 15 | 30 | VSLS-1310-B-40 | 40 | 32 |
VSLS-1310-B-15 | 15 | 83 | VSLS-1310-B-50 | 50 | 38 |
1550nm SLD Broadband Light Sources
Part No. | Output power(mW) | FWHM(nm) | Part No. | Output power(mW) | FWHM(nm) |
VSLS-1550-B-0.2 | 0.2 | 95 | VSLS-1550-B-10 | 10 | 40 |
VSLS-1550-B-1 | 1 | 43 | VSLS-1550-B-15 | 15 | 40 |
VSLS-1550-B-3 | 3 | 45 | VSLS-1550-B-16 | 16 | 80 |
VSLS-1550-B-3 | 3 | 60 | VSLS-1550-B-20 | 20 | 40 |
VSLS-1550-B-5 | 5 | 60 | VSLS-1550-B-25 | 25 | 40 |
VSLS-1550-B-8 | 8 | 60 | VSLS-1550-B-35 | 35 | 40 |
Notice:
All the output powers above refer to the powers without isolator. The output power will decrease 5%-20% with isolator.
Product Description:
The VENUS series high-power SLD (SLED) light source of Connet Laser is a high-stability source designed for scientific research and industrial production with the high-power, broadband SLD (SLED) module being internally installed. Aiming at special characteristics of SLD (SLED) laser, the SLD (SLED) light source of Connet Laser employs the specialized protective measurement on circuit design and the optimized optical path processing in order to protect the laser from the reflected light and the surge of current or voltage, thus ensuring that the light source can be operated safely and stably in a long time.
The VENUS series SLD (SLED) source of Connet Laser covers different intervals within the scope of 800~1650nm with the typical wavelengths of 840nm, 980nm,1060nm, 1310nm, and 1550nm, etc. There are plenty of choices for output power and spectral width. In addition, Connet Laser can offer the low polarization ratio SLD source to satisfy demands for different applications according to the requirement of the user.
Specifications：
Parameter | Unit | Specifications | ||
Min | Typ. | Max | ||
Part No. |
| VSLS-XXXX-B | ||
Center Wavelength1 | nm | 840nm, 980nm, 1060nm, 1310nm, 1550nm | ||
Output Power2 | mW | >1.5 | ||
Spectral Width (FWHM)3 | nm | >20 | ||
Spectral Modulation | dB | <0.45 | ||
Output Isolation4 | dB | 30 | ||
| Stability of Output Power (15min)5 | % | <1 | ||
Stability of Output Power (8h)5 | % | <3 | ||
Output Power Operating Range |
| Coarse / Fine | ||
Operating Voltage | VAC | 170 | 220 | 260 |
Power Consumption | W | - | - | 5 |
Operating Temperature | ℃ | 0 | - | 50 |
Storage Temperature | ℃ | -40 | - | 85 |
Output Fiber Type |
| Single Mode Fiber (PM fiber optional) | ||
Output Fiber Length | m | > 1 | ||
Output Fiber Connector |
| FC/APC (other options available) | ||
Dimensions | mm | 270(L)×235(W)×105(H) | ||
1. Center wavelength is optional;
2. Output power is optional depending on wavelength;
3. Spectrum width is optional depending on wavelength;
4. Output isolation is related to wavelength;
5. The output power stability is measured under 25℃, after 30 minutes' warm-up.
840nm SLD Broadband Light Sources
Part No. | Output power(mW) | FWHM(nm) | Part No. | Output power(mW) | FWHM(nm) |
VSLS-840-B-1 | 1 | 50 | VSLS-840-B-15 | 15 | 50 |
VSLS-840-B-3 | 3 | 20 | VSLS-840-B-20 | 20 | 18 |
VSLS-840-B-7.5 | 7.5 | 50 | VSLS-840-B-25 | 25 | 50 |
VSLS-840-B-10 | 10 | 18 | VSLS-840-B-30 | 30 | 14 |
980nm SLD Broadband Light Sources
Part No. | Output power(mW) | FWHM(nm) | Part No. | Output power(mW) | FWHM(nm) |
VSLS-980-B-2 | 2 | 35 | VSLS-980-B-3 | 3 | 20 |
1060nm SLD Broadband Light Sources
Part No. | Output power(mW) | FWHM(nm) | Part No. | Output power(mW) | FWHM(nm) |
VSLS-1060-B-1.5 | 1.5 | 70 | VSLS-1060-B-10 | 10 | 70 |
VSLS-1060-B-5 | 5 | 35 | VSLS-1060-B-20 | 20 | 35 |
VSLS-1060-B-5 | 5 | 70 | VSLS-1060-B-20 | 20 | 70 |
VSLS-1060-B-10 | 10 | 30 | VSLS-1060-B-30 | 30 | 35 |
1310nm SLD Broadband Light Sources
Part No. | Output power(mW) | FWHM(nm) | Part No. | Output power(mW) | FWHM(nm) |
VSLS-1310-B-1 | 1 | 43 | VSLS-1310-B-18 | 18 | 42 |
VSLS-1310-B-2 | 2 | 45 | VSLS-1310-B-20 | 20 | 30 |
VSLS-1310-B-5 | 5 | 50 | VSLS-1310-B-20 | 20 | 56 |
VSLS-1310-B-8 | 8 | 75 | VSLS-1310-B-30 | 30 | 58 |
VSLS-1310-B-10 | 10 | 30 | VSLS-1310-B-40 | 40 | 43 |
VSLS-1310-B-15 | 15 | 30 | VSLS-1310-B-40 | 40 | 32 |
VSLS-1310-B-15 | 15 | 83 | VSLS-1310-B-50 | 50 | 38 |
1550nm SLD Broadband Light Sources
Part No. | Output power(mW) | FWHM(nm) | Part No. | Output power(mW) | FWHM(nm) |
VSLS-1550-B-0.2 | 0.2 | 95 | VSLS-1550-B-10 | 10 | 40 |
VSLS-1550-B-1 | 1 | 43 | VSLS-1550-B-15 | 15 | 40 |
VSLS-1550-B-3 | 3 | 45 | VSLS-1550-B-16 | 16 | 80 |
VSLS-1550-B-3 | 3 | 60 | VSLS-1550-B-20 | 20 | 40 |
VSLS-1550-B-5 | 5 | 60 | VSLS-1550-B-25 | 25 | 40 |
VSLS-1550-B-8 | 8 | 60 | VSLS-1550-B-35 | 35 | 40 |
Notice:
All the output powers above refer to the powers without isolator. The output power will decrease 5%-20% with isolator.
