Variable-gain amplifier

⠀⠀⠀⠀⠀⠀⠀⠀⠀

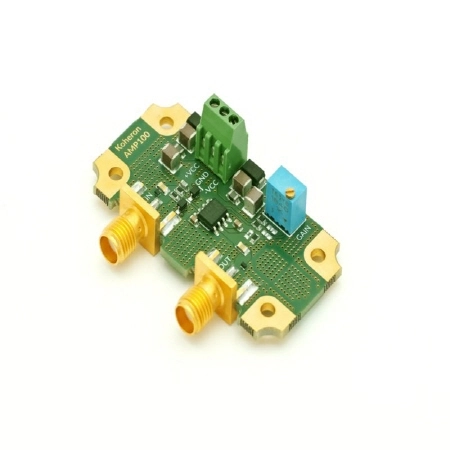

Koheron AMP100 is a ±15 V voltage amplifier with adjustable gain.

Supply voltage range	±5 V to ±16 V
Supply current	8.5 mA
Gain range	1.05 to 20
3 dB bandwidth (gain = 10)	2 MHz
Input-referred voltage noise (1 kHz)	< 3 nV/√Hz
Slew rate	55 V/µs
Output voltage swing	±12 V (±15 V supply)
Input impedance	50 Ω
Output impedance	50 Ω
Outside dimensions	50 mm x 33 mm x 14 mm
Weight	11 g
