Quantum cascade laser driver
⠀⠀⠀⠀⠀⠀⠀⠀⠀

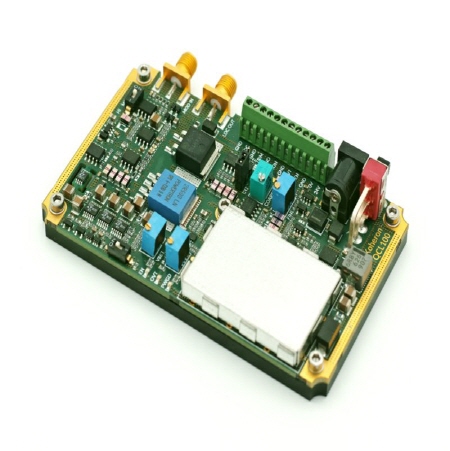

Koheron QCL100 is a high-performance current driver designed to drive high-voltage loads such as Quantum Cascade Lasers. It operates as a current sink, allowing the laser anode to be connected to the ground. The QCL100 driver provides a compliance voltage adjustable up to 15 V and an adjustable precision current limit. The board features a 5 MHz modulation input and a 10 Hz trimming input. It is supplied from a single 24 V input and comes with an aluminum base plate
Specifications
QCL100-A-500 QCL100-A-1000
| Laser current | 0 - 650 mA | 0 - 1300 mA |
| Supply voltage VS | 19 V - 26 V | 19 V - 26 V |
| Compliance voltage | 15 V at 500 mA (13.5 V at 650 mA) | 15 V at 1000 mA (13 V at 1300 mA) |
| 3 dB modulation bandwidth | 5 MHz | 5 MHz |
| Current monitor gain | 2 V/A | 1 V/A |
| RMS noise (10 Hz - 1 MHz) | 680 nArms | 1350 nArms |
| Current noise density (1 kHz) | 650 pA/√Hz | 1300 pA/√Hz |
| Modulation gains | 10 mA/V, 50 mA/V | 20 mA/V, 100 mA/V |
| Operating temperature | 0 °C - 50 °C | 0 °C - 50 °C (with provided baseplate) |
| Outside Dimensions | 100 mm x 68 mm x 16 mm | 100 mm x 68 mm x 16 mm |
| Compatible lasers | Anode-grounded / Floating diodes | Anode-grounded / Floating diodes |
