Low noise laser diode driver
⠀⠀⠀⠀⠀⠀⠀⠀⠀

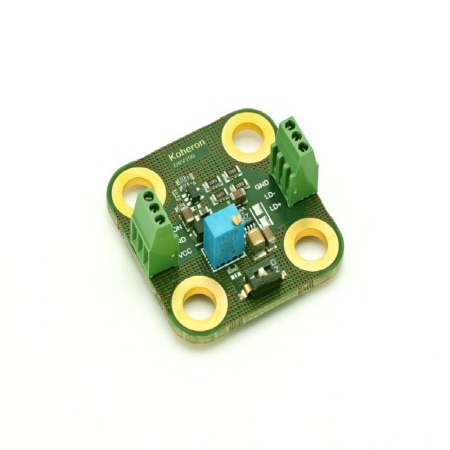

Koheron DRV100 drivers are compact, ultralow noise laser drivers, designed to operate narrow linewidth laser diodes. Power supply can be as low as 3 V. They can be directly operated with a switched supply thanks to a very high noise rejection. Laser current can be adjusted with a manual potentiometer.
Specifications DRV100-A-40 DRV100-A-200
| Laser current | 0 - 40 mA | 0 - 200 mA |
| Supply voltage VS | 3 - 15 V (VS = V+ - V-) | 3 - 15 V (VS = V+ - V-) |
| Compliance voltage | 4 V | 4 V |
| Current monitor | 7.2 mV/mA | 1.5 V/A |
| Current monitor output impedance | 1 kΩ | 1 kΩ |
| Temperature coefficient | 50 ppm/°C | 50 ppm/°C |
| RMS noise (10 Hz - 1 MHz) | 55 nArms (up to 60 nArms) | 320 nArms |
| Current noise density (1 kHz) | 52 pA/√Hz | 250 pA/√Hz |
| Current limit | 42 mA | 200 mA |
| Slow start (90 % setpoint) | 490 ms | 490 ms |
| Outside Dimensions | 38 mm x 38 mm x 12 mm | 38 mm x 38 mm x 12 mm |
| Compatible lasers | Floating diodes / anode-grounded | Floating diodes / anode-grounded |
