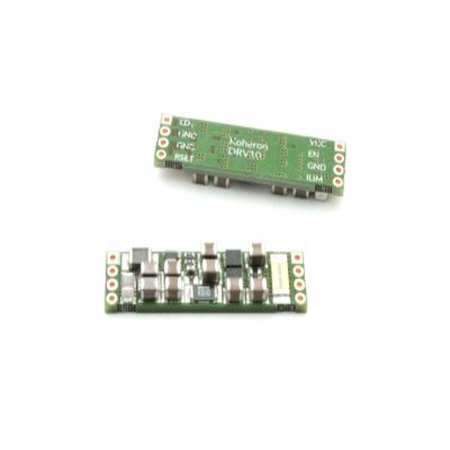

OEM PCB-mount laser diode driver
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Koheron DRV10 is an OEM PCB-mount low-noise laser driver with 12 V compliance voltage. The DRV10 accepts up to 36 V input voltage with efficiency up to 70%. Laser current is set with an external resistor.
Specifications
DRV10-200
| Compatible lasers | Cathode-grounded / floating diodes |
| Current driver | |
| Laser current | 0 - 200 mA |
| Compliance voltage | 12 V |
| Temperature coefficient | 50 ppm/°C |
| RMS noise (10 Hz - 1.1 MHz) | < 200 nArms |
| Current noise density (1 kHz) | 180 pA / Hz1/2 |
| Current limit | adjustable with external resistor |
| Other | |
| Supply voltage | 3 - 36 V |
| Outside Dimensions | 38 mm x 10 mm x 4 mm |
| Weight | 3.2 g |
| Operating temperature | 0 °C - 50 °C |
