AIC10 Iris Controller

⠀⠀⠀⠀⠀⠀⠀⠀⠀

Description

Jump to: Features & What’s Included | Specifications | Downloads

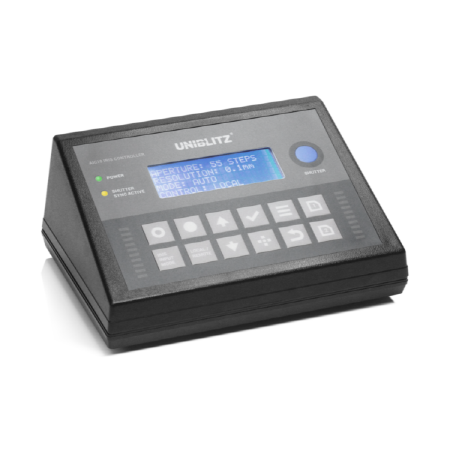

The AIC10 is a tabletop motorized iris diaphragm (auto iris) controller designed for use with the Uniblitz AI25 Auto Iris. The AIC10 features an intuitive button array and digital user interface, allowing it to operate the iris via a modified serial command protocol. When equipped, the AIC10 will also operate the AI25’s optional high-speed shutter attachment independently from the iris. The shutter’s electronic sync allows the AIC10 to indicate the shutter’s state.

See the AIC10 User Manual for additional information regarding this device. The AIC10 is RoHS compliant and CE certified.

Current Lead Time: 4 – 5 weeks

Repeat Shutter Exposure	65ms minimum between exposures for 25 mm (aperture diameter) shutter 165ms minimum between exposures when 25 mm shutter is cycled continuously
Shutter Driver	Continuously variable frequency of exposures from DC to the shutter’s maximum rate H-bridge type drive circuit for 25mm Bi-stable DSS type shutter
Iris Drive	Maximum peak drive power: 12 W Peak drive voltage: +12 VDC Peak drive current: 1.00 A
Power Supply	External tabletop AC/DC switching adaptor Output: +12 VDC, 2.08 A, 25 W Input: 100-240 VAC, 50/60 Hz, 0.60 A
All BNC Inputs	Input Impedance: 1K ohms Active High only – Exception IRIS DIR/POS – Level Triggered TTL Compatible
All BNC Outputs	Input Impeadance: 1K ohms Active High only TTL Compatible
USB Input – Type B 2.0	(9) Commands Recognized Data Transfer Rate – 9600 Baud VCP Settings – 8 Data Bits, 1 Stop Bit, No Parity, No Flow Control

Indicators	Green POWER LED indicator Yellow SHUTTER SYNC ACTIVE LED indicator
Power Requirements	+12 VDC, 25 Watts Input – 2mm DC Jack
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – +55 °C
Size	Controller Unit: 3.12” x 7.00” x 5.50” (79.2 x 177.8 x 139.7 mm) Power Adapter (included): 2.13” x 3.66” x 1.42” (54 x 93 x 36 mm)
Weight	Controller Unit: 1.05 lbs (476 g) Power Adapter: 0.46 lbs (209 g)
Accessories Included	AIC10 Iris Controller Manual (included on flash drive) 10C3 iris/shutter interconnect cable (3.0 m) – For interfacing AIC10 with iris/shutter USB-AB Cable (1.0 m) – For interfacing with computer PS12 Power Supply w/ US & Euro line cords AIC10 Quick Reference Guide

SHUTTER “Open”	Opens shutter	64	40	100	01000000	@
SHUTTER “Close”	Closes shutter	65	41	101	01000001	A
SHUTTER “Trigger”	Toggles shutter state	66	42	102	01000010	B
SHUTTER/IRIS “Reset”	Closes shutter, opens iris	67	43	103	01000011	C
IRIS “Decrement”	Closes iris one position (step 1)	68	44	104	01000100	D
IRIS “End”	Fully closes iris	69	45	105	01000101	E
IRIS “Goto”	Sends iris to requested position	71 3	47 3	107 3	01000111 3	GX1X2 2
IRIS “Home”	Fully opens iris	72	48	110	01001000	H
IRIS “Increment”	Opens iris one position (step 1)	73	49	111	01001001	I
