AI25 Auto Iris
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Description
Jump to: Key Features | Specifications | Downloads
The Uniblitz AI25 is a motorized iris diaphragm (auto iris) that allows for the remote control of a variable 25 mm aperture. This electronically-controlled aperture is ideal for remote light attenuation or depth-of-field control. The iris’s aperture closes down to 1.5 mm, and an optional shutter attachment allows users to fully close the aperture.
The AI25’s low-profile form-factor means that it can be used in applications where spacial limitations are a consideration. An optional housing is available which gives the AI25 a compact package with no externally protruding components and two flat mounting surfaces.
Current Lead Time: 4 – 5 weeks

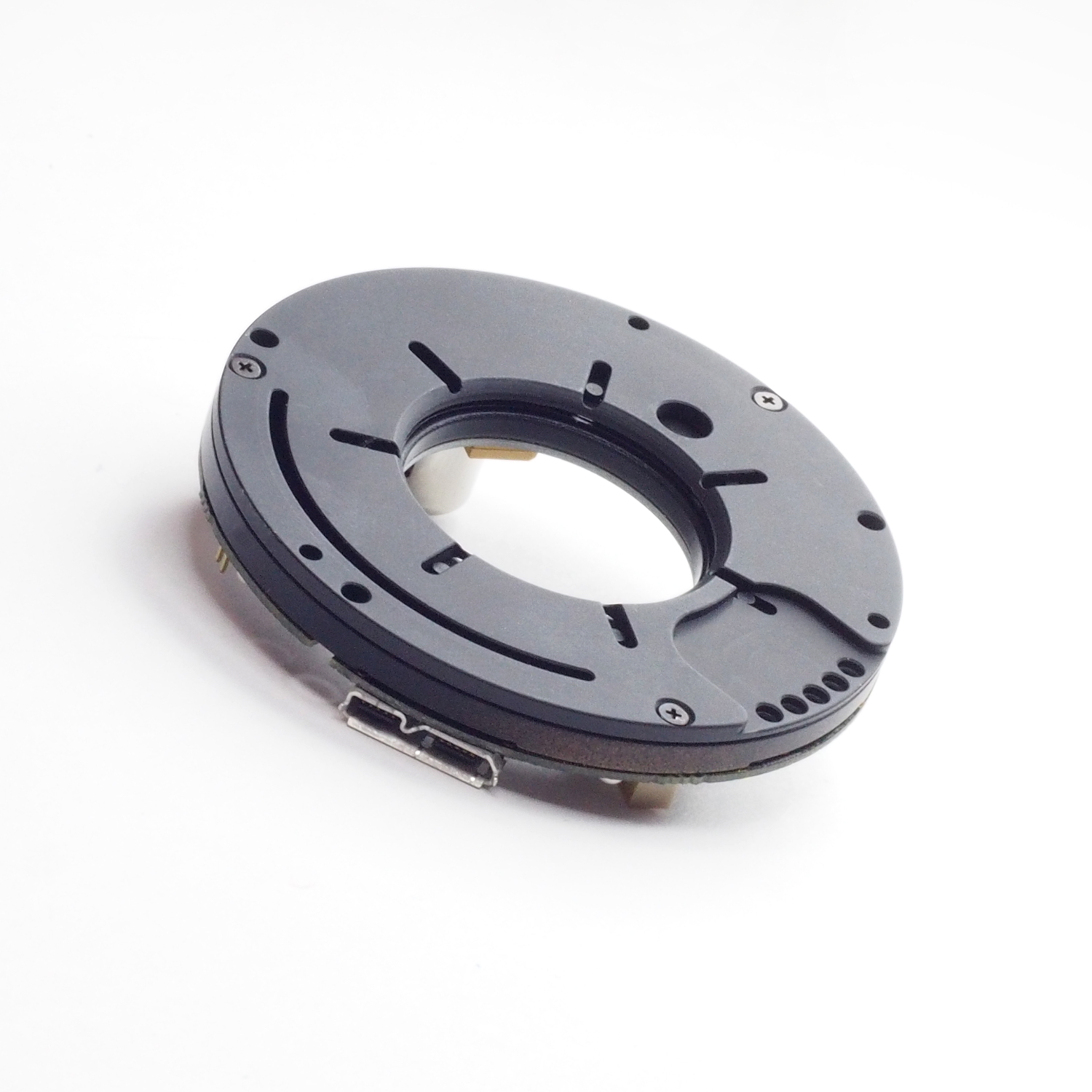

Uniblitz AI25 Motorized Iris Diaphragm (Side)

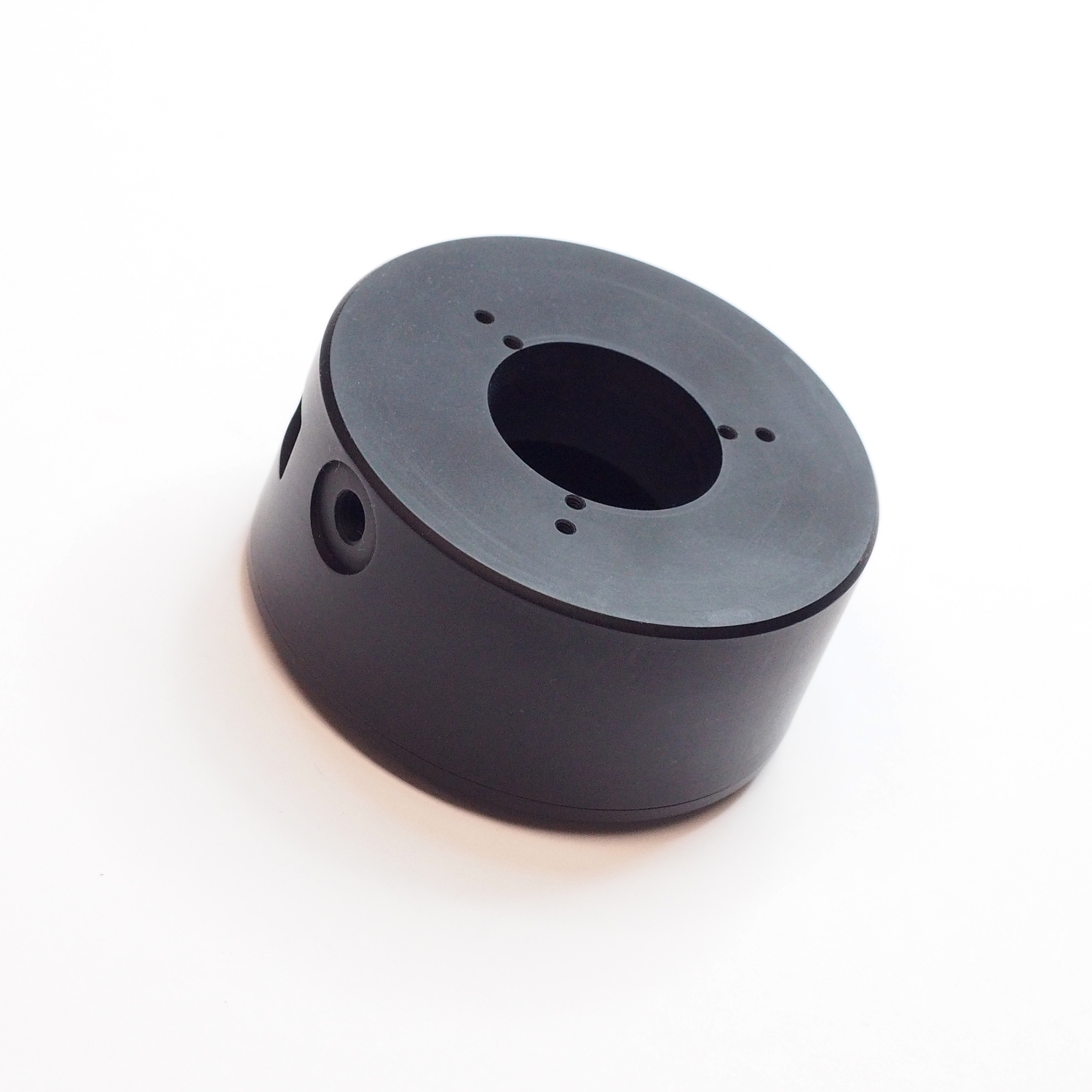

Uniblitz AI25 Motorized Iris Diaphragm (Housed)
Key Features
- Operation Range: 1.5 – 25.0 mm
- Closing speed: 0.22 seconds
- Resolution (mm/step): 0.44 ± 0.33
- Low-profile form-factor
- Optional high speed shutter attachment available
- Optional iris/shutter housing available
- RoHS Compliant
- Configured for the AIC10 Iris Controller
Specifications
Weight (Un-housed)Weight (W/ Shutter)Weight (Housed W/ Shutter)Operating
Temp.Number of Iris Blades
| 1.31 oz (37.20 g) | 2.00 oz (56.80 g) | 5.82 oz (164.90 g) | -10 – +65 °C | 7 |
Number of Steps 1Resolution (mm/step)Operation Range (mm)Closing Speed (min to max)
| 54 | 0.44 ± 0.33 | 1.5 – 25.0 | 0.22 seconds |
1 A step is equal to a single movement of the iris blades/aperture (while in the “Fine” resolution mode).
Iris Control Options
- AIC10 Iris Controller – Required for operation at this time
- OEM digital control – Operate the AI25 directly without the AIC10 Iris Controller
