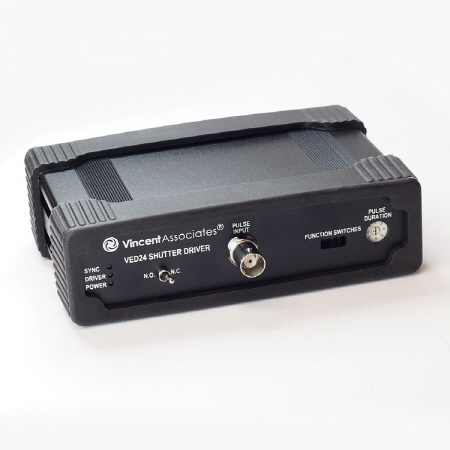

VED24 Shutter Driver
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Description
Jump to: What’s Included | Shutter Compatibility | Specifications | Downloads
The Uniblitz VED24, or Versatile Electronic Driver, provides simple, straightforward shutter control. The device is single-channel, and is compatible with both uni-stable and bi-stable shutter devices. Operation options include manual shutter control, external triggering, and remote computer interfacing. Exposure is determined by external pulse (Active-Low, TTL), computer interface, or switch contact.
See the VED24 User Manual for additional information regarding this device. The VED24 is RoHS compliant and CE certified.
Current Lead Time: 5 – 6 weeks
What’s Included
- VED24 Shutter Driver
- Manual (included on flash drive)
- PS24 +24 VDC, 40W, Power Supply w/ US line cord
- 510F Shutter Interconnect Cable (3.0 m)
- USB-AB Cable (1.0 m)
- 5M203D Adapter
- 701A-S5 Adapter
Shutter Compatibility
CSDSSESLSNSTSVSXRS
| CS251 | DSS10B | ES6B | LS21 | NS15B | TS2B | VS141 | XRS61 |
| CS351 | DSS20B | LS31 | NS25B | TS6B | VS251 | XRS141 | |
| CS451 | DSS25B | LS61 | NS25S1 | VS351 | XRS251 | ||
| CS651 | DSS35B | NS35B | |||||
| CS901 | NS45B | ||||||
| NS65B |
1 Shutter will require “E” option (“For use with VED24 or D880C”) for VED24 compatibility.
Don’t see your device listed above? Please contact us for information regarding the compatibility of other shutter devices.
Specifications
System Characteristics
| Repeat Exposure | Minimum time between exposures is determined by shutter used and open close pulse duration. |
| Shutter Drive | Continuously variable frequency of exposures from DC to the shutter’s maximum rate |
| Maximum peak pulse power: 41 W | |
| Pulse voltage Max.: +18 VDC Max | |
| Pulse current Max.: 2.25A (Test conditions: 18 Volts, 8 Ω – not continuous) | |
| Power Requirements | +24VDC, PS24 Included, AC power supply. |
| Required AC Input: 100-240 VAC, 50/60 Hz | |
| Power Supply Output: +24 VDC, 1.67A, 40W | |
| Input Plug (to VED24 Controller): 2 mm DC plug, Center is positive | |
| Pulse Input (BNC) | Active-low |
| Input impedance: 1K Ohms | |
| Maximum source current: 100 µA | |
| Maximum sink current: 1 µA | |
| Minimum pulse width determined by applicable shutter | |
| Maximum pulse width unlimited | |
TTL compatible:
| |
| SYNC Output (BNC) | Active-high |
| Maximum source current: 3.0 mA | |
| Maximum sink current: 20 mA | |
| Maximum low-level: +0.5 VDC | |
| Minimum high-level: +4.5 VDC. This output becomes active when shutter used is equipped with an electronic synchronization sensor. | |
| General | Size (HWD) 1.61 x 5.47 x 4.6 inches (41.0 x 139.0 x 116.8 mm) |
| Weight 12.27 oz. (.35kg) | |
| Included Power Supply (PS24) Input 100/240 VAC, 50-60 Hz | |
| Output +24VDC, 1.67A, 40W | |
| RoHS Compliant | |
| CE Certified (optional) |
