ED12DSS Shutter Driver
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Description
Jump to: What’s Included | Shutter Compatibility | Specifications | Downloads

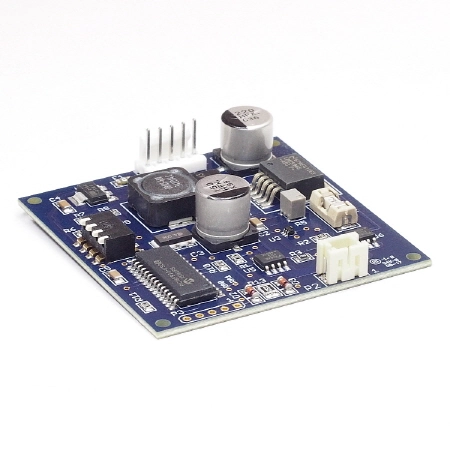

The Uniblitz ED12DSS is an open-frame, bi-stable, single board shutter driver well-suited for integration into OEM applications. All that is required is a user-supplied +12 to +24 VDC power supply and TTL input signal source.
The ED12DSS is the optimal open-frame driver for the Uniblitz DSS series shutters. Installation requires a connection to a user-supplied power supply and input and output harness connectors, and the selection of the open and close pulse duration using the on-board 4-position piano switch. The TTL pulse duration determines the shutter’s exposure time.
See the ED12DSS User Manual for additional information regarding this device. The ED12DSS is RoHS compliant.
Current Lead Time: 4 – 5 weeks
What’s Included
- ED12DSS Shutter Driver
- Manual (included on flash drive)
- 203D Shutter Interconnect Cable
- ED-IOP Input Cable
A power supply is not included with this device.
Shutter Compatibility
CSDSSESLSNSTSVSXRS
| DSS10B | ES6B | NS15B1 | TS2B | ||||
| DSS20B | NS25B1 | TS6B | |||||
| DSS25B | NS35B1 | ||||||
| DSS35B | NS45B1 |
1 Will require “ED” option (“For use with ED12DSS…”) for ED12DSS compatibility.
Don’t see your device listed above? Please contact us for information regarding the compatibility of other shutter devices.
Specifications
System Characteristics
| Repeat Exposure | Minimum time between exposures is determined by shutter used and open close pulse duration. |
| Shutter Drive | Continuously variable frequency of exposures from DC to the shutter in operation maximum rate. |
| Trigger Input | Active-high |
| TTL Compatible | |
| General | Size (HWD) 0.50 x 2.25 x 2.25 inches (12.7 x 57.2 x 57.2 mm) |
| Weight 0.73 oz (0.021 Kg) | |
| Power input: +12VDC to +24VDC at 1.5A (user supplied) | |
| RoHS Compliant |
