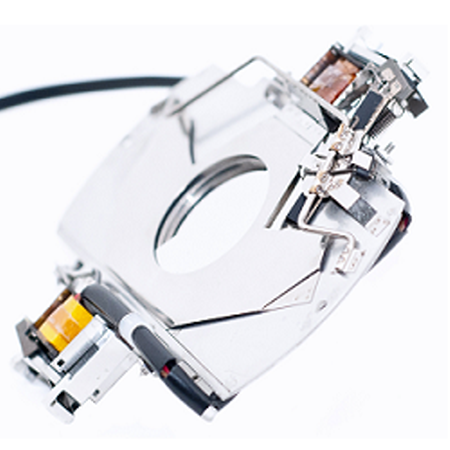

XRS25 25mm X-ray Shutter
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Description
Current Lead Time: 5 – 6 weeks
The Uniblitz XRS25 has been designed specifically for x-ray switching applications. The innovative platinum-iridium (PtIr) blade design allows beam extinction of 90% up to 30 keV x-ray energy (based upon the tenth value extinction of PtIr). The XRS25 is well suited for applications such as x-ray crystallography, medical x-ray imaging, etc.
Uni-stable shutter devices, like the XRS25, require power to hold the blades in the open state. Note: This device requires two drive channels. The indicated driver will determine the included cable (910C-D7 or 910C-D5).
As of May 1, 2019, the 7-pin Female Mating connector is no longer included with purchase. Purchase 7-pin Female Mating Connector.
*The “For use in Vacuum” option will equip the shutter with encapsulated coils for vacuum levels up to 10-6 Torr. The housing, connector, and electronic sync options cannot be selected from the product builder when “For use in Vacuum” is applied as these options are not vacuum compatible and may cause outgassing. For higher vacuum-rated applications, or questions, please contact us.
Key Features
- 25mm aperture
- Uni-stable operation
- Capable of blocking x-ray energy (30 KeV)
- Slim, low-profile form-factor
- RoHS Compliant
- Transfer time on opening: 10.0 milliseconds
- Total opening time: 16.0 milliseconds
- Configured for the VCM-D1 Shutter Driver
Specifications
For additional technical information please see the XRS25 X-ray Shutter Datasheet.
Coil ResistancePulse Voltage to OpenHold Voltage1 (Nominal)
| 12 OHMS | +65 VDC | +5 VDC |
Weight UnhousedWeight HousedOperating Temp.Max. Opening BounceMax. Closing BounceMax. Freq. of Operation2Number of Shutter Blades
| 4.40 oz (0.13 kg) | 12.98 oz (0.37 kg) | 0 – 80 °C | 15% | 5% | 2.0 Hz / 10.0 Hz | 2 |
1 Voltage level required across actuator coil when being held in the open position.
2 (Continuous/Burst) Continuous frequency rating specified at shutter’s minimum exposure pulse. Burst frequency rating specified for four (4) seconds maximum with one (1) minute minimum between bursts.
