VS35 35mm Optical Shutter
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Description
Current Lead Time: 6 – 8 weeks

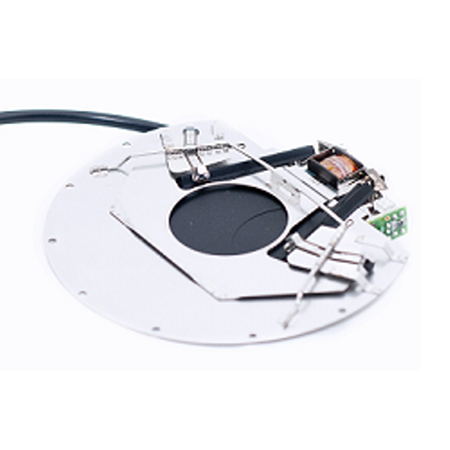

The Uniblitz VS35 has been designed to provide accurate, repeatable exposures for a wide variety of applications. The VS series shutters have been successfully field tested in microscopy, video imaging, PMT protection, and photographic applications worldwide. The VS35 is available in a housed or un-housed configuration for OEM applications (or simply where spatial limitations are a consideration).
Uni-stable shutter devices, like the VS35, require power to hold the blades in the open state (though the device can be custom-configured for “normally open” operation).
As of May 1, 2019, the 7-pin Female Mating connector is no longer included with purchase. Purchase 7-pin Female Mating Connector.
*The “For use in Vacuum” option will equip the shutter with encapsulated coils for vacuum levels up to 10-6 Torr. The housing, connector, and electronic sync options cannot be selected from the product builder when “For use in Vacuum” is applied as these options are not vacuum compatible and may cause outgassing. For higher vacuum-rated applications, or questions, please contact us.
Key Features
- 35mm aperture
- Uni-stable operation
- Small, slim form-factor
- RoHS Compliant
- Transfer time on opening: 13.0 milliseconds
- Total opening time: 18.0 milliseconds
- Configured for the VCM-D1 Shutter Driver
Specifications
For additional technical information please see the VS35 Optical Shutter Datasheet.
Coil ResistancePulse Voltage to OpenHold Voltage 1 (Nominal)
| 12 OHMS | +70 VDC | +7 VDC / +5 VDC 2 |
Weight UnhousedWeight HousedOperating Temp.Max. Opening BounceMax. Closing BounceMax. Freq. of Operation 3Number of Shutter Blades
| 2.33 oz (0.07 kg) | 14.35 oz (0.41 kg) | 0 – 80 °C | 15% | 5% | 5.0 Hz / 20.0 Hz | 2 |
1 Voltage level required across actuator coil when being held in the open position.
2 Dual hold voltage system included in the VCM-D1 Driver.
3 (Continuous/Burst) Continuous frequency rating specified at shutter’s minimum exposure pulse. Burst frequency rating specified for four (4) seconds maximum with one (1) minute minimum between bursts.
