NS35B 35mm Optical Shutter
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Description
Current Lead Time: 4 – 5 weeks

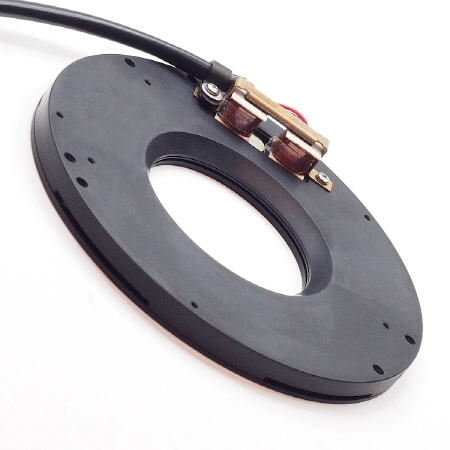

The Uniblitz NS35B is a 35mm-aperture bi-stable optical shutter utilizing our patented N-CAS® technology. The NS35B’s simple design provides maximum clearance around the aperture, and a machined flat surface makes for its easy integration into virtually any system. The NS35B has an overall diameter of 3.18 inches, and an electronic synchronization is available.
Bi-stable shutter devices, like the NS35B, require no power to hold the blades in either the open or closed state.
*The “For use in Vacuum” option will equip the shutter with encapsulated coils for vacuum levels up to 10-6 Torr. The housing, connector, and electronic sync options cannot be selected from the product builder when “For use in Vacuum” is applied as these options are not vacuum compatible and may cause outgassing. For higher vacuum-rated applications, or questions, please contact us.
Key Features
- 35mm aperture
- Bi-stable operation
- Only two unique moving parts
- Slim, low-profile form-factor
- RoHS Compliant
- Transfer time on opening: 12.0 milliseconds
- Total opening time: 18.5 milliseconds
- Can be configured for the VED24, VDM1000, or ED12DSS shutter drivers.
Specifications
For additional technical information please see the NS35B Optical Shutter Datasheet.
Coil ResistancePulse Voltage to OpenHold Voltage
| 6 OHMS 1 | +10.7 VDC 2 | N/A |
WeightOperating Temp.Max. Opening BounceMax. Closing BounceMax. Freq. of Operation 3Number of Shutter Blades
| 2.64 oz (0.07 kg) | 0 – 80 °C | 15% | 5% | 2.0 Hz / 5.0 Hz | 5 |
1 Two 12 OHM coils wired in parallel
2 Peak voltage as provided by the VED24 Driver
3 (Continuous/Burst) Continuous frequency rating specified at shutter’s minimum exposure pulse. Burst frequency rating specified for four (4) seconds maximum with one (1) minute minimum between bursts.
