DSS25B 25mm Optical Shutter
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Description
Current Lead Time: 4 – 5 weeks

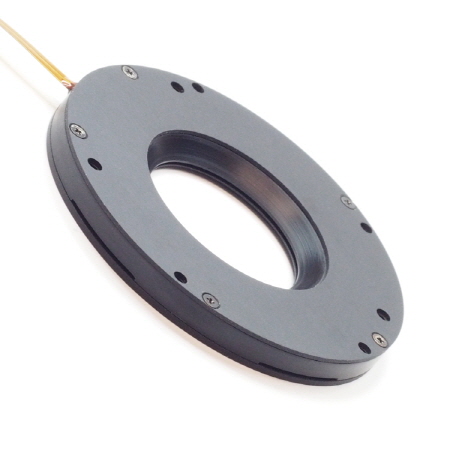

The Uniblitz DSS25B is a 25mm-aperture bi-stable optical shutter that has eliminated the external protruding actuator and contains no other interfering components. This makes the DSS25B an extremely low-profile device that is capable of fitting into very tight spaces. Additionally, the device’s flat mounting surfaces make for its easy integration into virtually any system.
Bi-stable shutter devices, like the DSS25B, require no power to hold the blades in either the open or closed state.
Key Features
- 25mm aperture
- Bi-stable operation
- Only two unique moving parts
- Extremely slim, low-profile form-factor
- RoHS Compliant
- Transfer time on opening: 12.6 milliseconds
- Total opening time: 25.8 milliseconds
- Configured for the VED24 Shutter Driver
Specifications
For additional technical information please see the DSS25B Optical Shutter Datasheet.
Coil ResistancePulse Voltage to OpenHold Voltage
| 7.5 OHMS | +10.7 VDC 1 | N/A |
WeightOperating Temp.Max. Opening BounceMax. Closing BounceMax. Freq. of Operation 2Number of Shutter Blades
| 0.73 oz (20.70 g) | -10 – +65 °C | 15% | 5% | 5.0 Hz / 10.0 Hz | 5 |
1 Peak voltage as provided by the VED24 Driver
2 (Continuous/Burst) Continuous frequency rating specified at shutter’s minimum exposure pulse. Burst frequency rating specified for four (4) seconds maximum with one (1) minute minimum between bursts.
Key Features
- 25mm aperture
- Bi-stable operation
- Only two unique moving parts
- Extremely slim, low-profile form-factor
- RoHS Compliant
- Transfer time on opening: 12.6 milliseconds
- Total opening time: 25.8 milliseconds
- Configured for the VED24 Shutter Driver
Specifications
For additional technical information please see the DSS25B Optical Shutter Datasheet.
Coil ResistancePulse Voltage to OpenHold Voltage
| 7.5 OHMS | +10.7 VDC 1 | N/A |
WeightOperating Temp.Max. Opening BounceMax. Closing BounceMax. Freq. of Operation 2Number of Shutter Blades
| 0.73 oz (20.70 g) | -10 – +65 °C | 15% | 5% | 5.0 Hz / 10.0 Hz | 5 |
1 Peak voltage as provided by the VED24 Driver
2 (Continuous/Burst) Continuous frequency rating specified at shutter’s minimum exposure pulse. Burst frequency rating specified for four (4) seconds maximum with one (1) minute minimum between bursts.
