DSS10B 10mm Laser Shutter
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Description
Current Lead Time: 4 – 5 weeks

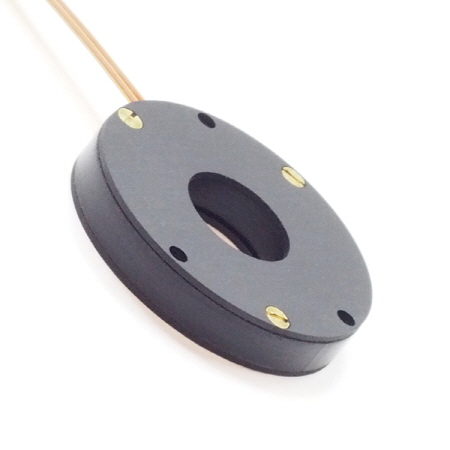

The Uniblitz DSS10B is a 10mm bi-stable optical shutter that withholds an extremely low-profile construction. The device’s lack of an external protruding actuator makes it very slim and flexible for system integration. The inherent reliability of the DSS10B comes from the fact that it contains only two moving parts: the drive ring and the blades. It is guaranteed to operate for 2,000,000 operations.
Bi-stable shutter devices, like the DSS10B, require no power to hold the blades in either the open or closed state.
Key Features
- 10mm aperture
- Bi-stable operation
- Extremely slim, low-profile form-factor
- RoHS Compliant
- Transfer time on opening: 5.0 milliseconds
- Total opening time: 8.6 milliseconds
- Configured for the VED24 Shutter Driver
Specifications
For additional technical information please see the DSS10B Optical Shutter Datasheet.
Coil ResistancePulse Voltage to OpenHold Voltage
| 8 OHMS | +10.7 VDC 1 | N/A |
WeightOperating Temp.Max. Opening BounceMax. Closing BounceMax. Freq. of Operation 3Number of Shutter Blades
| 0.17 oz (4.70 g) | -10 – +65 °C | 15% | 5% | 5.0 Hz / 20.0 Hz | 4 |
1 Peak voltage as provided by the VED24 Driver
2 (Continuous/Burst) Continuous frequency rating specified at shutter’s minimum exposure pulse. Burst frequency rating specified for four (4) seconds maximum with one (1) minute minimum between bursts.
