Description

Current Lead Time: 10 – 12 weeks

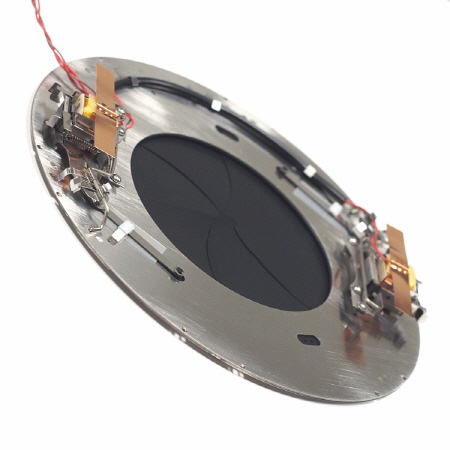

The Uniblitz CS90 has been designed to provide accurate, repeatable exposures for a wide variety of applications such as telescopy and aerospace. The slim form-factor provides a very large 90mm aperture that can be inserted into a 7.00 inch diameter housing. The CS90 is available in a housed or an un-housed configuration for OEM applications (or simply where spatial limitations are a consideration).

Uni-stable shutter devices, like the CS90, require power to hold the blades in the open state.

A normally open configuration of this device is available by special order. Please contact us for more information.

As of May 1, 2019, the 7-pin Female Mating connector is no longer included with purchase. Purchase 7-pin Female Mating Connector.

*The “For use in Vacuum” option will equip the shutter with encapsulated coils for vacuum levels up to 10-6 Torr. The housing, connector, and electronic sync options cannot be selected from the product builder when “For use in Vacuum” is applied as these options are not vacuum compatible and may cause outgassing. For higher vacuum-rated applications, or questions, please contact us.
