CS65 65mm Optical Shutter
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Description
Current Lead Time: 8 – 10 weeks

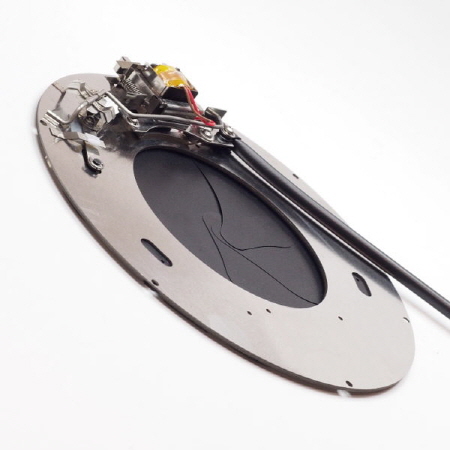

The Uniblitz CS65 has been designed to provide accurate, repeatable exposures for a wide variety of applications such as telescopy and aerospace. The slim form-factor provides a large 65mm aperture that can be inserted into a 5.00 inch diameter housing. The CS65 is available in a housed or an un-housed configuration for OEM applications (or simply where spatial limitations are a consideration).
Uni-stable shutter devices, like the CS65, require power to hold the blades in the open state.
A normally open configuration of this device is available by special order. Please contact us for more information.
As of May 1, 2019, the 7-pin Female Mating connector is no longer included with purchase. Purchase 7-pin Female Mating Connector.
*The “For use in Vacuum” option will equip the shutter with encapsulated coils for vacuum levels up to 10-6 Torr. The housing, connector, and electronic sync options cannot be selected from the product builder when “For use in Vacuum” is applied as these options are not vacuum compatible and may cause outgassing. For higher vacuum-rated applications, or questions, please contact us.
Key Features
- Large 65mm aperture
- Uni-stable operation
- 6-bladed design
- Slim form-factor
- RoHS Compliant
- Transfer time on opening: 45.0 milliseconds
- Total opening time: 54.0 milliseconds
- Configured for the VCM-D1 Shutter Driver
Specifications
For additional technical information please see the CS65 Optical Shutter Datasheet.
Coil ResistancePulse Voltage to OpenHold Voltage1 (Nominal)
| 12 OHMS | +70 VDC | +7 VDC / +5 VDC2 |
Weight UnhousedWeight HousedOperating Temp.Max. Opening BounceMax. Closing BounceMax. Freq. of Operation3Number of Shutter Blades
| 4.00 oz (0.11 kg) | 13.20 oz (0.37 kg) | 0 – 80 °C | 15% | 5% | 2.0 Hz / 5.0 Hz | 6 |
1 Voltage level required across actuator coil when being held in the open position.
2 Dual hold voltage system included in VCM-D1 Driver
3 (Continuous/Burst) Continuous frequency rating specified at shutter’s minimum exposure pulse. Burst frequency rating specified for four (4) seconds maximum with one (1) minute minimum between bursts.
