PARAMETER
| Specifications | |
| Material | BK7 Grade A Optical Glass |
| Dimension Tolerance | +0.0,-0.2mm |
| Clear Aperture | >80% |
| Deviation | 180°+/- 3 arc seconds |
| Flatness | λ/4 on big surface, λ/10 on Other Surfaces |
| Surface Quality | 60/40 scratch/dig |
| Wavefront Distortion | λ/2@633nm |
| Bevel | 0.2mm to 0.5mm |
| Coating on Input and Output Surface | Uncoated |

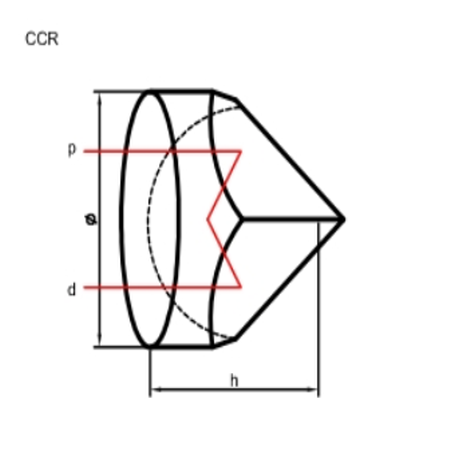

| Part No. | φ(mm) | h(mm) |
| CCR1101 | 15 | 11.3 |
| CCR1102 | 25.4 | 19 |
| CCR1103 | 38.1 | 29.2 |
| CCR1104 | 50.8 | 38.1 |
