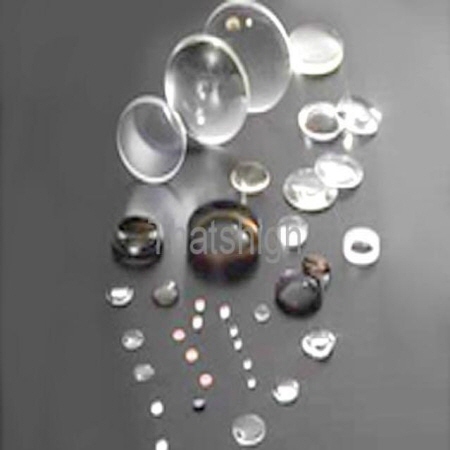

Lens has many applications ranging from simple convergence or divergence of laser beam to precise imaging and image transfer.
THATSHIGH provides diverse lenses for different applications.
Lens | Materials | Illustration | Property and Application |
Plano-convex | BK7 |
| Positive focus length. Most suitable in conditions where one conjugate is five times more than the other, e.g. in sensor application or for use with near collimated light. |
Double-convex | BK7 |
| Most suitable in conditions where the conjugates are on opposite sides of the lense and the ratio of the distances is less than 5:1, e.g. as simple image relay components. |
Plano-concave | BK7 |
| Negative lens with the form most suitable in conditions where one conjugates is five times more than the other, e.g. producing divergent light from a collimated input beam. |
Double-concave | BK7 |
| Negative lens with the form most suitable for producing diverging light or virtual image, when the input light is converging. |
Typical Specifications for Lens
Material | BK7 (or fused silica) |
Dimension Tolerance | +0.0, -0.15mm |
Design Wavelength | 546.1nm |
Design Index | n=1.5183±0.0005 |
Paraxial Focal Length | ±2% |
Surface Quality [S/D] | 60/40 |
Centration | 3' |
Bevel | 0.25mm×45° |
Focal | 15mm -1000mm |
Diameter | 3mm - 200mm |
