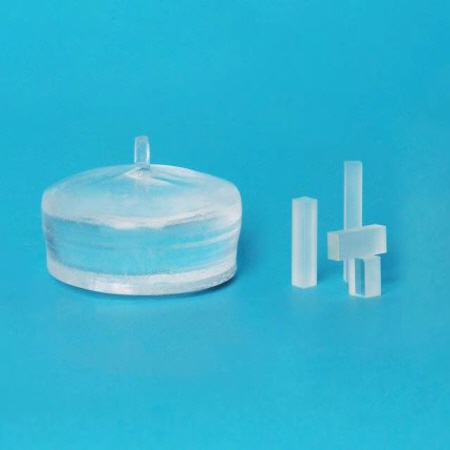

HATSHIGH BBO is featured by:
1.Broad phase matchable range from 409.6 nm to 3500 nm;
2.Wide transmission region from 190 nm to 3500 nm;
3.Large effective second-harmonic-generation (SHG) coefficient about 6 times greater than that of KDP crystal;
4.High damage threshold;
5.High optical homogeneity with dn » 10-6/cm;
6.Wide temperature-bandwidth of about 55°C.
THATSHIGH Offers BBO of:
1.Strict quality control;
2.Crystal length from 0.02mm to 25mm and size up to 15x15x15 mm3;
3.P-coatings, AR-coatings, mounts and re-polishing services;
4.A large quantity of crystals in stock
THATSHIGH Specifications for BBO Crystal
Dimension Tolerance | (W±0.1mm) ×(H±0.1mm) ×(L+0.5/-0.1mm) (L≥2.5mm) |
Angle Tolerance | Δθ ≤ 0.25° Δφ ≤ 0.25° |
Clear Aperture | 90% of central area |
Chamfer | ≤ 0.2mm @45° |
Chip | ≤ 0.1mm |
Damage Threshold | > 1 TEM00, 10ns, 10HZ (uncoated) |
Flatness | < λ/8 @ 633nm |
Parallelism | < 20" |
Perpendicularity | ≤ 5' |
Surface Quality [S/D] | < 10/5 |
Wavefront Distortion | < λ/8 @ 633nm |
Interior Quality | No visible scattering paths or centers [inspected by 50mW green laser] |
