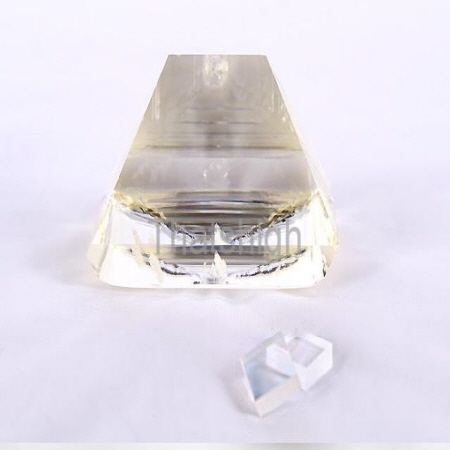

Potassium Titanyl Phosphate (KTiOPO3 or KTP) crystals are widely used in both commercial and military lasers including laboratory and medical systems, range-finders, lidar, optical communication and industrial systems.
THATSHIGH's KTP is featured by
1. Large nonlinear optical coefficient
2.Wide angular bandwidth and small walk-off angle
3.Broad temperature and spectral bandwidth
4. High electro-optic coefficient and low dielectric constant
5.Large figure of merit
6.Nonhydroscopic, chemically and mechanically stable
THATSHIGH offers
1.Strict quality control
2.large crystal size up to 20x20x40mm3 and maximum length of 60mm;
3.Quick delivery(2 weeks for polished only, 3 weeks for coated)
4.Unbeatable price and quantity discount
5.Technical support
6.AR-coating, mounting and re-polishing service
THATSHIGH Specifications for KTP Crystal
Dimension Tolerance | (W±0.1mm) ×(H±0.1mm) ×(L+0.5/-0.1mm) (L≥2.5mm) |
Angle Tolerance | Δθ ≤ 0.25° Δφ ≤ 0.25° |
Clear Aperture | 90% of central area |
Chamfer | ≤ 0.2mm @45° |
Chip | ≤ 0.1mm |
Damage Threshold | > 0.5 for 1064nm, TEM00, 10ns, 10Hz (AR-coated) |
Flatness | < λ/8 @ 633nm |
Parallelism | < 20" |
Perpendicularity | ≤ 5' |
Surface Quality [S/D] | < 10/5 |
Wavefront Distortion | < λ/8 @ 633nm |
Coating | AR coating available upon request |
Interior Quality | No visible scattering paths or centers [inspected by 50mW green laser] |
