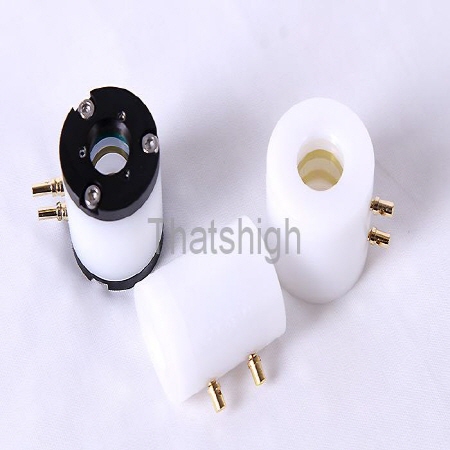

DKDP Pockels cell
Application of DKDP Pockels cell:
With excellent physical and optical property, DKDP series Pockels cells are widely used in laser systems with large caliber, high power and narrow pulse width. They are among the optimal E-O Q-switches used in pulse laser systems, including: OEM laser systems; Medical/cosmetic lasers; Versatile R&D laser platforms; Military & aerospace laser systems.
THATSHIGH Specifications of DKDP Pockels cell:
Extinction Ratio | >7000:1 |
Wavefront Distortion | < λ/8 @633nm |
Capacitance | according to different model |
Single Pass Optical Transmission | >98.5% |
Damage Threshold | >750MW/cm2 @1064nm, 10ns 10Hz |
Spectral Range | 240nm~1400nm |
Typical Aperture Diameter | 8mm~30mm |
THATSHIGH Features of DKDP Pockels Cell:
High deuteration (>99%) DKDP.
No static birefringence.
No photorefractive damage.
Resistant to environmental temperature.
Excellent electric-optical properties.
Sealant and adhesive free.
High extinction ratio
High damage threshold
Low λ/4 Voltage
Single Pass Optical Transmission
Compact design
Easy adjustment
Typical Performance @1064nm
Type | EOD-8Sc | EOD-10Spa | EOD-11Wa | EOD-12Sb | EOD-13Sa |
Dimension | Ф19*27mm | Ф25.4*39mm | Ф35*42mm | Ф28*33mm | Ф25.3*42.5mm |
Clear Aperture | Ф8mm | Ф10mm | Ф11mm | Ф12mm | Ф13mm |
Single pass optical transmission | >98.5% | >98.5% | >98.5% | >98.5% | >98.5% |
Wavefront Distortion | <λ/8 | <λ/8 | <λ/8 | <λ/8 | <λ/8 |
Extinction Ratio@1064nm | >7000:1 | >7000:1 | >7000:1 | >7000:1 | >7000:1 |
λ/4 Voltage | 3000V+/-200V | 3000V+/-200V | 3000V+/-200V | 3000V+/-200V | 3000V+/-200V |
Capacitance | <4.5pF | <5pF | <6.5pF | <7pF | <8pF |
DamageThreshold | 750MW/cm²@1064nm.10ns,10Hz | ||||
