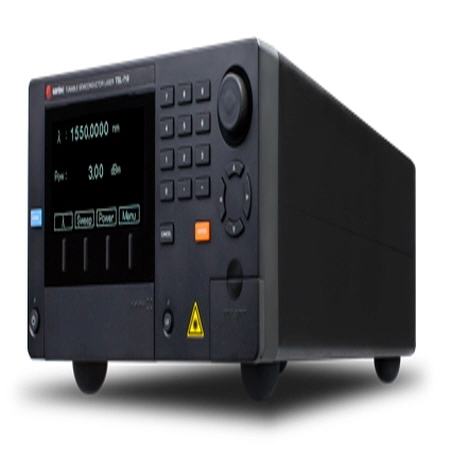

Premium Performance Tunable Laser TSL-710
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Santec
TSL-710
Narrow linewidth, low noise and premium performance.
- Excellent Accuracy (± 2 pm) & Resolution (0.1 pm)
- Narrow Linewidth < 100 kHz
- Wide Tuning Range from 1480 to 1640 nm
- Fine tuning scan range 10 GHz
Overview
Combining high output power with high signal-to-noise ratio makes the TSL-710 an invaluable tool for optical testing. An innovative external cavity design has been implemented to lower the optical ASE noise, leading to a signal-to-noise ratio of over 90 dB/0.1 nm, while still maintaining a high output power of over +10 dBm. The TSL-710 is available for WDL and PDL measurement with our multi-port power meters (MPM series), a polarization control unit (PCU-100) and dedicated software. (Swept Test System)
Features&Characteristics
Wide tuning range from 1480 to 1640 nm
If you require a different wavelength range, please refer to the TSL-550 which offers more wavelength ranges, with options from 1260 to 1680 nm.
- High wavelength accuracy: +/- 2 pm
- High output power: + 13 dBm
- High signal-to-noise ratio: 90 dB/0.1 nm
- Narrow linewidth: 100 kHz
- Typical Data -

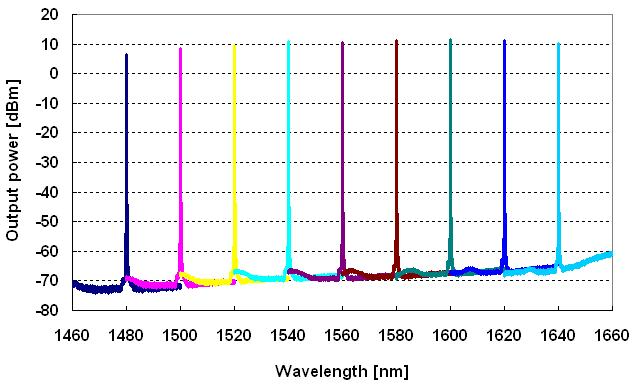

Wavelength vs. Output Power- Wide Wavelength Range -
Applications
- Optical characterization of components and modules:
- Tunable Filters, Interleavers, Fiber Bragg Gratings, Couplers, Splitters, Isolators, Switches, etc
- WSS and Wavelength Blockers
- DWDM components - Silicon photonic material characterization, including micro-cavity ring resonators
- Spectroscopy
- Interferometry
Please refer to here for details. -> Swept Test System
Please refer to here for details. -> Customer feedback
