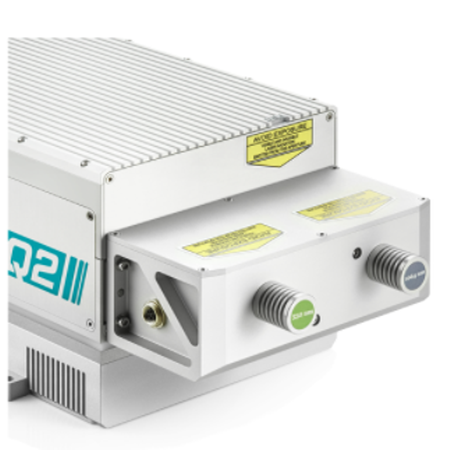

Compact Second Harmonic Generator SHG for Q2/Q2HE lasers
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- Compact attachable 2nd harmonic generator compatible with Q2 and Q2HE series lasers.
- Factory-configurable two exit ports.
- Microprocessor controlled temperature tuned nonlinear crystal.
- Remote monitoring and control via common with laser Ethernet interface.
- Optional attachable pulse energy monitor.
SHG technical details
SHG is compact second harmonic generator module is designed to be attached to our Q2 or Q2HE series lasers.
SHG has two exit ports that can be factory-configured in several ways. Standard configurations are listed in the table below. Second harmonic beam can be configured to be coaxial with fundamental beam (SHG-0 option) or can be separated from fundamental by build-in dichroic mirrors (SHG-1 and SHG-2 options).
When supplied together with Q2/Q2HE series laser, status of SHG can be remotely monitored and controlled from laser control panel (PC is required).
Our pulse energy monitor of EM series can be attached to the exit port with digital or analog readout of pulse energy value.
Most of high performance birefringent crystals are hygroscopic, which might limit their lifetime in humid environment. However, if they are continuously kept at higher than ambient temperatures, the lifetime of crystals can be significantly extended and can be even longer than laser system itself. To keep crystals dry, SHG module needs to be always connected to the laser controller. If powering is not available, the module should be stored in dry environment.
Specifications 1)
| Model | SHG |
Conversion efficiency 2) | >50 % |
Pulse to pulse energy stability 3) | <2.5 % RMS |
| Spectral purity 4) | >99% |
| Typical pulse duration | 10-20% shorter than fundamental |
| Typical beam diameter | 10-20 % smaller than fundamental |
| Beam pointing stability | same as of pump beam |
| Polarization at Port #1 | Vertical |
| Polarization at Port #2 | Horizontal |
| Dimensions | |
| Harmonic generator (W×L×H) | 153 × 96.5 × 58 mm3 |
| Weight | < 0.5 kg |
| Operating requirements | |
| Ambient temperature | 15 – 30 ºC |
| Relative humidity | 10 – 80 % (non-condensing) |
| Powering | From laser controller |
