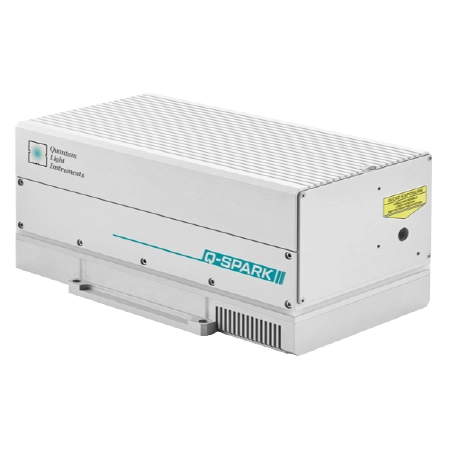

Q-SPARK - short pulse Q-switched laser
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- Up to 20 mJ pulse energy at 1064 nm, up to 20 MW peak power.
- Air cooled (water-free).
- NEW! Short pulse duration down to 800 ps.
- Up to 100 Hz repetition rate.
- Optional build-in 2nd, 3rd or 4th harmonic generator.
- > 2 G shot lifetime of pump diodes.
- Built-in sync pulse generator for triggering of user equipment.
- Remote monitoring and control via built-in Ethernet interface.
- Optional attachable PC controlled motorized attenuator.
- Optional attachable pulse energy monitor.
- Optional fiber coupled output.
Q-SPARK – up to 20 mJ @ 1.5 ns
Description
Q-SPARK is diode pumped, water-free, Q-switched laser designed for wide range of applications that require sub-nanosecond or nanosecond pulses with up to 20 MW peak power.
We optimized our innovative water-free laser crystal end-pumping technology to produce Gaussian-like, low divergence, sub-nanosecond pulses in compact and energy-efficient package.
Passively Q-switched Q-SPARK version can be configured to produce pulses as short as 750 ps and with more than 5 mJ pulse energy. E-O Q-switched version delivers up to 20 mJ with Laser is monitored and controlled trough Ethernet port via build-in web-server. API is also provided for integration with user devices.
Laser functionality can be further extended by wide selection of auxiliary equipment:
• Up to fourth harmonic output wavelength can be produced build-in harmonics generator, located inside laser body. See datasheet below for pulse energy specifications.
• Pulse energy can be adjusted with our attachable motorized attenuator for fundamental or harmonic wavelength beam.
• Pulse energy can be monitored by our attachable pulse energy monitor with analog and/or digital output.
• Residual harmonic generator wavelengths can be accessed with optional auxiliary exit port.
• Fiber coupled output is available by request. Please inquire for detailed specifications.
Applications
- Laser Induced Breakdown Spectroscopy (LIBS)
- Light Detection And Ranging (LIDAR)
- Laser ablation/micromachining
- Time-of-Flight Spectroscopy (TOFS)
- Time Resolved Spectroscopy (TRS)
- Time domain thermoreflectance (TDTR)
