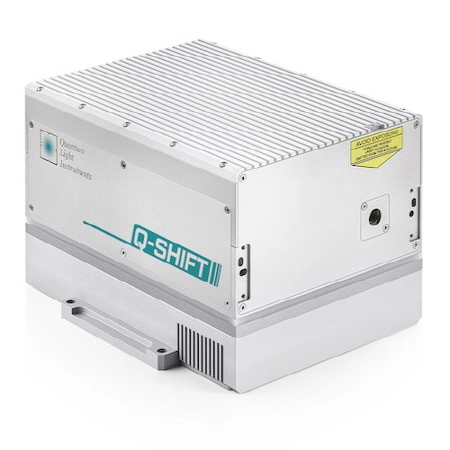

Q-SHIFT - Q-switched lasers with build-in nonlinear wavelength conversion stage
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- Up to 50 mJ pulse energy, up to 1 W average power.
- Up to 100 Hz pulse repetition rate.
- Air cooled (water-free).
- 2-5 ns pulse duration.
- Guaranteed > 2 G shot lifetime of pump diodes.
- Sync pulses for triggering of user equipment.
- Remote monitoring and control via built-in Ethernet interface.
- Optional attachable attenuator for fundamental wavelength.
- Optional stand-alone 2nd, 3rd, 4th harmonic generator.
- Optional stand-alone pulse generator for variable pulse repetition rate.
Q-SHIFT – Q-switched laser with build-in nonlinear wavelength conversion stage
Q-SHIFT is family of Q-switched lasers with build-in nonlinear wavelength conversion stage that allows to produce wavelengths that are not accessible with conventional solid-state laser sources. As pump sources our Nd:YAG or Nd:YLF lasers of Q2 or Q2HE series are used.
The wavelengths and pulse energies available is shown in picture below.
High peak intensity pulses at visible wavelengths (blue, yellow and red) are provided when Q-SHIFT laser is combined with our attachable SHG or stand-alone H-SMART harmonic generator.
Applications of laser include LCD repair, Laser Dermatology, eye-safe LiDAR and many others.
Laser functionality can be further extended by wide range of auxiliary equipment:
- Attachable second harmonic generator, model SHG.
- Stand-alone up to fifth harmonic generators of H-SMART series.
- Attachable motorized attenuator for fundamental wavelength.
- Attachable pulse energy monitor with analog and/or digital output.
- Stand-alone two-channel pulse generator for smoothly variable pulse repetition rate, burst, double-pulse and other user-configurable modes of operation.
Laser specifications tables for 1163/1177 nm, 1300/1317nm, 1551/1571 nm versions are presented below.
