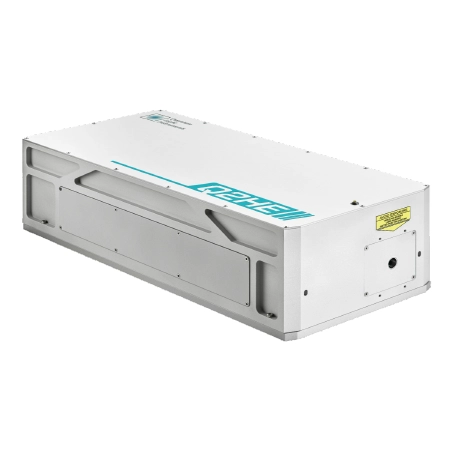

Q2HE - high energy air-cooled Q-switched laser
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- Up to 120 mJ pulse energy, up to 4 W average output power.
- 1053 or 1064 nm output wavelength.
- Air cooled (water-free).
- Up to 100 Hz pulse repetition rate.
- Smoothly variable pulse repetition rate for 1053 nm output wavelength models.
- >2 Gshot lifetime of pump diodes.
- Built-in sync pulse generator for triggering of user equipment.
- Remote monitoring and control via built-in Ethernet interface.
- Optional attachable 2nd harmonic generator.
- Optional 2nd, 3rd, 4th or 5th stand-alone harmonic generator.
- Optional attachable attenuator for fundamental wavelength.
- Optional attachable pulse energy monitor.
- Optional stand-alone injection seeder for SLM operation.
Q2HE – up to 120 mJ, up to 100 Hz
Quantum Light Instruments Ltd. innovative water-free laser crystal cooling technology enables generation of high quality laser beam with up to 120 mJ pulse energy and/or up to 4 W average output power.
Q2HE series sets new standard in Q-switched laser market. Advanced laser design resulted in compact, user-friendly turnkey system that requires little maintenance. There is no chillers or bulky power supplies that one needs fit under the table. Most of laser electronics is integrated into housing of the Q2HE and the only external modules are compact controller box and mains adapter that provides 28 VDC, 50-150 W power (depending on model).
Less than 7 ns pulse duration and low divergence of the beam enables efficient fundamental wavelength conversion to higher harmonics with shortest wavelength available of 211 nm.
Low jitter triggering pulses for user equipment are available in internal triggering mode. If required, laser pulsing can be externally triggered from delay generator.
Laser is controlled trough Ethernet port via build-in web-server. There is no need to install control software – any computer or even cell phone with modern web-browser installed will be able to control Q2HE. API is provided for integration with user devices.
Optional extensions are available by request:
• Attachable second harmonic generator.
• Attachable motorized attenuator for fundamental wavelength beam.
• Attachable pulse energy monitor with analog and/or digital output.
• Attachable beam guiding module.
• External two-channel pulse generator for variable pulse repetition rate.
• External seeder for SLM operation.
