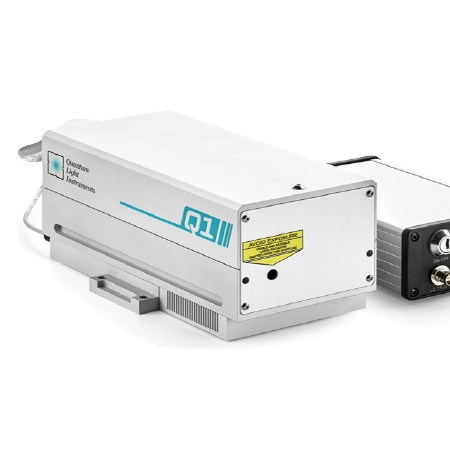

Q1 - compact diode pumped Q-switched laser
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- Up to 45 mJ pulse energy, up to 0.5 W average output power.
- Air cooled (water-free).
- Short pulse duration < 8 ns.
- Weight < 5 kg incl. power supply.
- Guaranteed > 2 Gshot pump diode lifetime.
- Variable pulse repetition rate.
- Built-in sync pulse generator for triggering of user equipment.
- Remote control via built-in Ethernet interface.
- Optional motorized attenuator for fundamental wavelength.
- Optional pulse energy monitor with digital and analog readout.
- Optional fiber coupled output.
- Optional stand-alone 2nd, 3rd, 4th or 5th harmonic generators of H1 series.
- Optional baseplate for mounting Q1 and H1 and/or Q1 and fiber coupler together.
Q1 technical description
Q1 is compact, energy-efficient, diode pumped, air-cooled, Q-switched laser designed for wide range of applications that require high peak power pulses.
Laser can produce up to 45 mJ at 10 Hz pulse repetition rate or up to 10 mJ at 50 Hz pulse repetition rate.
Low divergence of laser beam allows efficient conversion to harmonic wavelengths using optional H1 series harmonic generator module.
The laser can configured to emit 1053 nm or 1064 nm wavelength from Nd:YLF or Nd:YAG laser crystals respectively. Due athermal properties of Nd:YLF crystal, at 1053 nm the laser can operate from single shot to maximum pulse repetition rate without significant changes in beam divergence or profile.
Innovative laser design resulted in user-friendly turnkey system that requires little maintenance. There is no chillers or bulky power supplies that one needs fit under the table. All laser electronics is integrated into Q1 housing and the only external modules are lightweight controller box that provides laser control interfaces and mains adapter that provides 12 VDC powering. Total weight of the laser is less than 5 kg.
Laser is monitored and controlled trough Ethernet port via build-in web-server. Any computer or even cell phone with modern web-browser will be able to control Q1. API is provided for integration with user devices.
Low jitter triggering pulses for user equipment are available with up to 300 µs lead in internal triggering mode. In external triggering mode, laser pulsing can be externally triggered from delay generator.
Laser functionality can be further extended by wide selection of auxiliary equipment:
Up to fifth harmonic output can be produced from our stand-alone H1 series harmonic generators.
Pulse energy can be adjusted with our motorized attenuator for fundamental wavelength beam.
Pulse energy can be monitored by our attachable pulse energy monitor with analog and/or digital output.
Fiber coupled output is available by request. Please inquire for detailed specifications.
Applications
- Laser Induced Breakdown Spectroscopy (LIBS)
- Time-of-Flight Spectroscopy (TOFS)
- Light Induced Fluorescence (LIF) Spectroscopy
- Flash photolysis
- Matrix Assisted Laser Desorption/Ionization (MALDI)
- Pulsed light deposition (PLD)
- Laser ablation
Laser specifications tables for 10 Hz, 20 Hz and 50 Hz versions.
