Short Description:

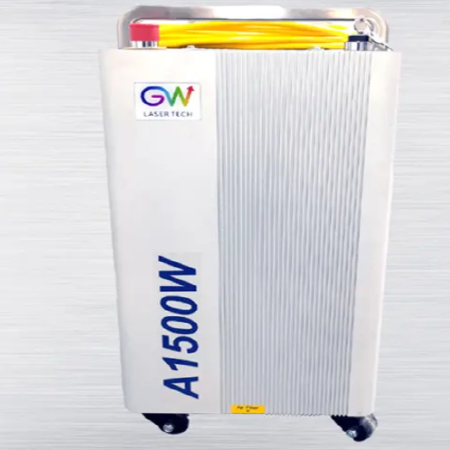

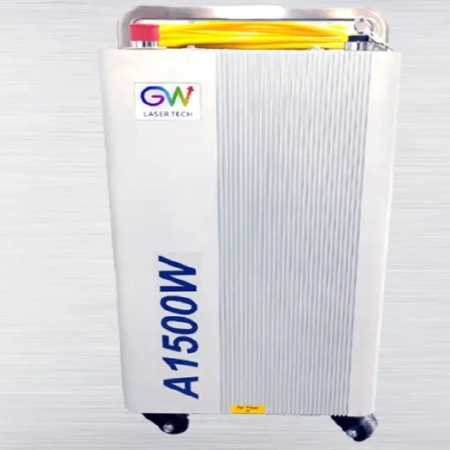

GW air cooled 1500W fiber laser based on 976nm pump technology, The current laser source in the market are mainly water-cooled solutions, that is, heat is taken out of the laser through the external circulation of the chiller. GW focuses on continuous discussion and innovation based on 976nm technology, combined with the high photoelectric conversion efficiency of 976nm Creatively solved the problem of air-cooled refrigeration capacity, launched the air-cooled 976nm technology for the first time in the industry, solved the power consumption and portability issues, and once again lead the technical development direction of fiber lasers.
Product characteristics
1) MAX output power 1500W, Welding depth reach to 3mm
2) 976nm pump technology ,high efficiency WPE ≥42%
3) Simple pendulum welding head,adjustable welding width
4) Weight <60kg, compact design ,small size
5) Air cooling technology,ultra energy-saving .220V-16A
6) Triple safety protection,build-in air pressure monitoring.
Optical specification
| Nominal max. output power | 1500W |
| Central wavelength | 1070±10nm |
| Laser beam quality | M2<1.3, fiber core 20um |
| Power stability | <2% |
| Red light pointer | 650nm |
| Fiber delivery cable | QBH/QD |
Electrical and Environmental
| Supply voltage | 220VAC/50Hz/60Hz |
| Digital signal | 24VDC |
| Control interface | TTL/RS232/Ethernet/Databus |
| Electrical power consumption | ≤2.5KW |
| Ambient Temperature Range | 0~50℃ |
| Ambient humidity | ≤95% |
Mechanical specification
| Dimension | 650x300x570 [mm] (L*W*H) |
| Weight | 70kg |
Applications
| Precision Cutting | Laser welding |
| Laser Drilling/Piercing | Laser marking |
| 3D Printing | Laser bonding |
