Short Description:

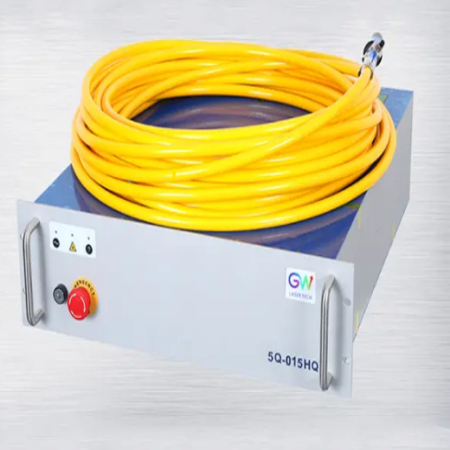

SMATLas 5Q series quasi-continuous fiber laser has higher output power,higher pulsing peak power, specially suitable for high peak power, long pulse width ,cold processing industrial environment,such as spot welding , line welding ,drilling , precision cutting ,etc. it’s easier integrated and lower maintenance cost compared with traditional YAG laser
Product characteristics
Custom define repeated frequency, peak power and duty
MAX modulation frequency100kHz、MIN pulse width100ns
MAX peak power 1500W、MAX peak energy 15J
Independent remote monitor , integrated fault active defense
Optical specification
| Nominal max. output power | 150W |
| Max. peak power | 1500W |
| Max. pulse energy | 15J/1500W Peak power 10ms pulsewidth |
| Pulse width | 0.05-50ms |
| Red light pointer | 650nm |
| Fiber delivery cable | QBH/QD |
Cooling system
| Minimum cooling capacity | 2.1KW |
| Minimum flow rate | 15L/min |
| Coolant temperature range | 25±1℃ |
| Supply coolant pressure | 5-6bar |
Electrical and Environmental
| Supply voltage | 220VAC/50Hz/60Hz |
| Digital signal | 24VDC |
| Control interface | TTL/RS232/Ethernet/Databus |
| Electrical power consumption | ≤3.6KW |
| Ambient temperature range | 5-45℃ |
| Ambient humidity | ≤95% |
Mechanical specification
| Dimension | 590x482x132 [mm] (L*W*H) |
| Weight | 20kg |
Applications
| Precision Cutting | Laser welding |
| Laser Drilling/Piercing | Laser marking |
| 3D Printing | Laser bonding |
