Sapphire glass crystal extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis which making them ideal for demanding applications (such as laser systems). Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3) and is useful in a transmission range from 0.2 - 5.5μm.
Sapphire glass crystal
Sapphire glass crystal extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis which making them ideal for demanding applications (such as laser systems). Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3) and is useful in a transmission range from 0.2 - 5.5μm.

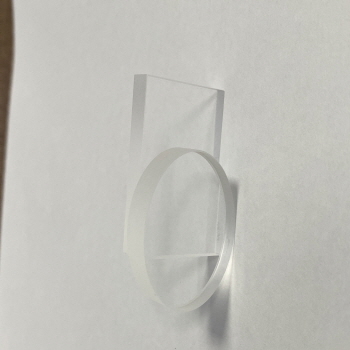

Product Name | High Quality Strong Optical Sapphire Glass Block AL2O3 Sapphire Glass |
Material | Sapphire glass |
Dimension | as request |
Thickness | as request |
Tolerance | +-0.1mm |
Coating | uncoating or as request |
Surface quality | 60/40 |
Flatness | L/4 |
Bevel | Normal |

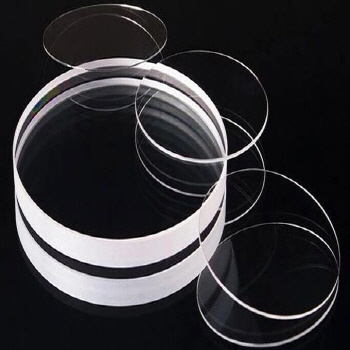

Product Name | Optical sapphire windows |
Material | Optical Sapphire (Al2O3) |
Structure | Flat |
Diameter | 3-400mm |
Diameter tolerance | +/-0.2mm |
Thickness Tolerance | +/-0.03mm |
Aperture | >90% |
Crystal axis cut | Random (c-cut available upon request) |
Surface Quality | 80/50~10/5 (S/D) |
Parallelism | <1 arc minute |
Chamfer | 0.3-0.5mmx45° |
Coating | AR or custom request |
