Name: VCSEL Chip (680 - 940 nm)
Availability: InStock

Home
VCSEL

VCSEL Chip (680 - 940 nm)

⠀⠀⠀⠀⠀⠀⠀⠀⠀

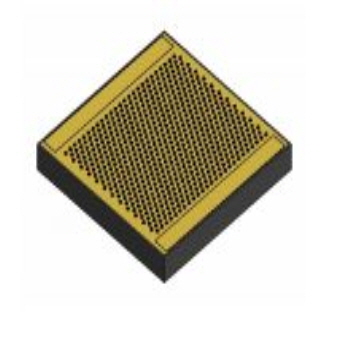

Light Avenue VCSEL chip series is designed for high performance consumer applications. Remarkable light extraction is reached by a particular chip design with vertical chip structure. As this die can be driven at very high currents compared to the chip size, an outstanding cost vs. performance ratio can be obtained.

Product	Laser Package	Typ. Wavelength	Optical Output Power	Threshold Current	Beam Mode	Monitor Diode	Data Sheet
LA LM0609AIV3	Chips	680 nm	4 mW	4 mA	MM	no	☞
LA LM29NIV2	Chips	850 nm	1200 mW	350 mA	MM	no	☞
LA LM40NIV2	Chips	850 nm	2400 mW	700 mA	MM	no	☞
LA LM40NIV3	Chips	850 nm	2500 mW	500 mA	MM	no	☞
LA LM5659NIV3	Chips	850 nm	4000 mW	800 mA	MM	no	☞
LA LM08NIV3	Chips	850 nm	6 mW	2 mA	MM	no	☞
LA LM29MIV2	Chips	940 nm	2300 mW	400 mA	MM	no	☞
LA LM40MIV3	Chips	940 nm	2400 mW	500 mA	MM	no	☞
LA LM5659MIV3	Chips	940 nm	4000 mW	800 mA	MM	no	☞
LA LM2631MIV3	Chips	940 nm	1000 mW	180 mA	MM	no	☞
LA LM06MIV3	Chips	940 nm	5 mW	2 mA	MM	no	☞
