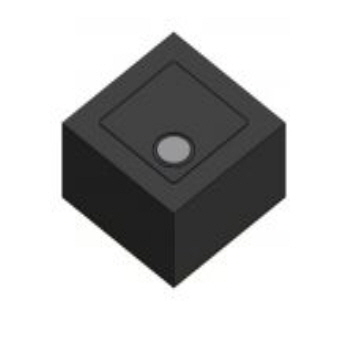

Name: PHOTODIODES (390 - 1100 nm)
Availability: InStock

Home
Photo Detectors

PHOTODIODES (390 - 1100 nm)

⠀⠀⠀⠀⠀⠀⠀⠀⠀

Features

- High sensitivity silicon PIN photodiode

- Suitable for visible light

- Small size of 15 mil only

Applications

- High sensitive photodetector

- Sensor

- Ambient light sensor

Product	Wavelength of max. Sensitivity	Spectral Bandwith	Viewing Angle	Photo Sensitive Area	Dimension	Data Sheet
LA PD28AP1	560 nm	390 - 800 nm	120 °	0.270 mm²	0.72 x 0.72 x 0.28 mm³	☞
LA PD120AP1	560 nm	390 - 800 nm	120 °	7.700 mm²	2.97 x 2.97 x 0.28 mm³	☞
LA PD15AP1	630 nm	440-650 nm	120 °	0.065 mm²	0,375x0,375x0,15 mm³	☞
LA PD32HP1	780 nm	430 - 1100 nm	120 °	0.360 mm²	0.8 x 0.8 x 0.22 mm³	☞
LA PD240BP1	800 nm	300 - 1100 nm	120 °	32.500 mm²	6.0 x 6.0 x 0.305 mm³	☞
LA PD18HP1	800 nm	430 - 1100 nm	120 °	0.026 mm²	0.44 x 0.44 x 0.305 mm³	☞
LA PD3323HP1	880 nm	400 - 1100 nm	120 °	0.310 mm²	0.6 x 0.85 x 0.22 mm³	☞
LA PD26HP1	900 nm	430 - 1100 nm	120 °	0.230 mm²	0.67 x 0.67 x 0.28 mm³	☞
LA PD165HP1	900 nm	430 - 1100 nm	120 °	15.400 mm²	4.2 x 4.2 x 0.35 mm³	☞
LA PD120HP2	900 nm	430 - 1100 nm	120 °	7.100 mm²	2.97 x 2.97 x 0.305 mm³	☞
LA PD11052HP1	900 nm	430 - 1100 nm	120 °	2.500 mm²	1.32 x 2.79 x 0.305 mm³	☞
LA PD200HP1	900 nm	430 - 1100 nm	120 °	21.700 mm²	5.04 x 5.04 x 0.305 mm³	☞
LA PD400HP1	900 nm	430 - 1100 nm	120 °	88.300 mm²	10.0 x 10.0 x 0.305 mm³	☞
LA PD7752HP1	900 nm	430 -1100 nm	120 °	1.600 mm²	1.3 x 1.96 x 0.305 mm³	☞
LA PD20HP1	915 nm	430 - 1100 nm	120 °	0.090 mm²	0.5 x 0.5 x 0.3 mm³	☞
LA PD2214HP1	940 nm	400 - 1100 nm	120 °	0.100 mm²	0.35 x 0.55 x 0.22 mm³	☞
LA PD43HP1	940 nm	430 - 1100 nm	120 °	0.800 mm²	1.09 x 1.09 x 0.22 mm³	☞
LA PD120BP2	940 nm	350 - 1100 nm	120 °	8.000 mm²	2.97 x 2.97 x 0.22 mm³	☞
LA PD40HP1	940 nm	430 - 1100 nm	120 °	0.660 mm²	1.09 x 1.09 x 0.13 mm³	☞
LA PD120BP1	940 nm	350 - 1100 nm	120 °	7.700 mm²	2.97 x 2.97 x 0.28 mm³	☞
LA PD20HP2	940 nm	430 - 1100 nm	120 °	0.120 mm²	0.5 x 0.5 x 0.15 mm³	☞
LA PD120HP3	940 nm	430 - 1100 nm	120 °	7.600 mm²	2.97 x 2.97 x 0.22 mm³	☞
LA PD120HP1	940 nm	430 - 1100 nm	120 °	7.700 mm²	2.97 x 2.97 x 0.28 mm³	☞
LA PD95HP1	940 nm	430 - 1100 nm	120 °	4.400 mm²	2.37 x 2.37 x 0.28 mm³	☞
LA PD60HP1	950 nm	590 - 1070 nm	120 °	1.650 mm²	1.5 x 1.5 x 0.28 mm³	☞
LA PD63HP1	950 nm	390 - 1100 nm	120 °	1.800 mm²	1.6 x 1.6 x 0.305 mm³	☞
