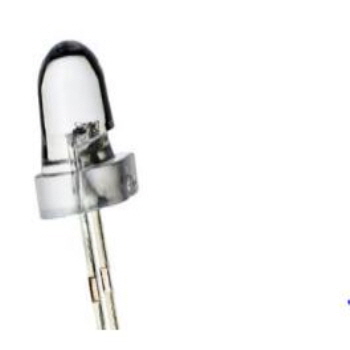

INFRARED LED (>1000 nm)
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Features
- Extremely small beam width
- High optical precision
- High optical efficiency
- High operating temperatures
Applications
- Industry
- Sensor
- Time of flight
- Infrared illumination
- Gesture recognition
| Product | Typ. Wavelength | Typ. Brightness | Measurement Current | LED Size | Radiation Angle | Data Sheet |
| LA RM10PIS | 1050 nm | 20 mW | 50 mA | 5.5 mm | 10 ° | ☞ |
| LA TM120PIS | 1050 nm | 3 mW | 20 mA | 5.3 mm | 120 ° | ☞ |
| Product | Typ. Wavelength | Typ. Brightness | Measurement Current | LED Size | Radiation Angle | Data Sheet |
| LA RM10PIS | 1050 nm | 20 mW | 50 mA | 5.5 mm | 10 ° | ☞ |
| LA TM120PIS | 1050 nm | 3 mW | 20 mA | 5.3 mm | 120 ° | ☞ |
