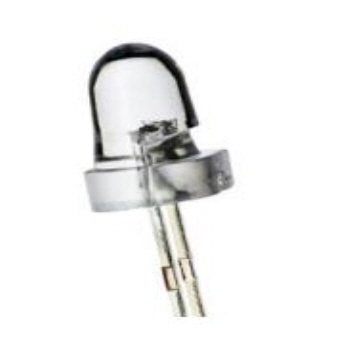

INFRARED LED (680 - 1000 nm)
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Features
- Long lifetime
- Extremely small beam width
- High optical precision
- High optical efficiency
- High operating temperatures
Applications
- Industry
- Sensor
- Light grids
- Automotive
| Product | Typ. Wavelength | Typ. Brightness | Measurement Current | LED Size | Radiation Angle | Data Sheet |
| LA RM10AIS | 690 nm | 50 mW | 50 mA | 5.5 mm | 10 ° | ☞ |
| LA TM120AIS | 690 nm | 6 mW | 20 mA | 5.3 mm | 120 ° | ☞ |
| LA AT020CIS | 730 nm | 2200 mW | 1000 mA | 32 x 23 mm | 20 ° | ☞ |
| LA TM120CIS | 730 nm | 5 mW | 20 mA | 5.3 mm | 120 ° | ☞ |
| LA RM10EIS | 730 nm | 40 mW | 50 vmA | 5.5 mm | 10 ° | ☞ |
| LA TM120EIS | 780 nm | 4 mW | 20 mA | 5.3 mm | 120 ° | ☞ |
| LA RM10CIS | 785 nm | 40 mW | 50 mA | 5.5 mm | 10 ° | ☞ |
| LA AT020NIT | 850 nm | 4000 mW | 1000 mA | 32 x 23 mm | 20 ° | ☞ |
| LA RM120NIS | 850 nm | 25 mW | 50 mA | 5.5 mm | 120 ° | ☞ |
| LA TM080NIP | 850 nm | 600 µW | 20 mA | 5.3 mm | 120 ° | ☞ |
| LA TM120NIT | 850 nm | 6 mW | 20 mA | 5.3 mm | 120 ° | ☞ |
| LA TM120NIS | 850 nm | 4 mW | 20 mA | 5.3 mm | 120 ° | ☞ |
| LA RM40NIS | 850 nm | 25 mW | 50 mA | 5.5 mm | 40 ° | ☞ |
| LA BM10NIS | 850 nm | 50 mW | 50 mA | 7 mm | 10 ° | ☞ |
| LA RM10NIT | 850 nm | 80 mW | 50 mA | 5.5 mm | 10 ° | ☞ |
| LA RM10NIS | 850 nm | 50 mW | 50 mA | 5.5 mm | 10 ° | ☞ |
| LA RL05NIP | 850 nm | 2 mW | 20 mA | 5.5 mm | 5 ° | ☞ |
| LA OM5090NIS | 850 nm | 25 mW | 50 mA | 5.5 mm | 50 / 90 ° | ☞ |
| LA RM120MIS | 940 nm | 25 mW | 50 mA | 5.5 mm | 120 ° | ☞ |
| LA RM40MIS | 940 nm | 25 mW | 50 mA | 5.5 mm | 40 ° | ☞ |
| LA TM120MIS | 940 nm | 4 mW | 20 mA | 5.3 mm | 120 ° | ☞ |
| LA RM10MIS | 940 nm | 50 mW | 50 mA | 5.5 mm | 10 ° | ☞ |
| LA OM5090MIS | 940 nm | 25 mW | 50 mA | 5.5 mm | 50 / 90 ° | ☞ |
| LA AT020MIT | 940 nm | 4000 mW | 1000 mA | 32 x 23 mm | 20 ° | ☞ |
| LA BM10MIS | 940 nm | 50 mW | 50 mA | 7 mm | 10 ° | ☞ |
