Name: RED LED (620 - 640 nm)
Availability: InStock

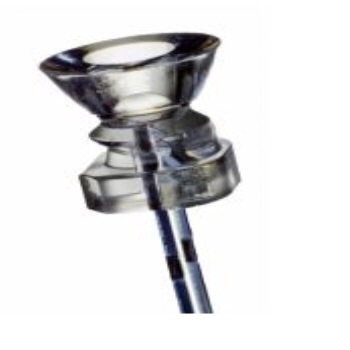

RED LED (620 - 640 nm)

⠀⠀⠀⠀⠀⠀⠀⠀⠀

Features

- Long lifetime

- Extremely small beam width

- High optical precision

- High optical efficiency

- High operating temperatures

Applications

- Industry

- Sensor

- Automotive

- Illumination

- Traffic signals

Product	Typ. Wavelength	Typ. Brightness	Measurement Current	LED Size	Radiation Angle	Data Sheet
LA BM10URL	625 nm	5000 mlm	50 mA	7 mm	10 °	☞
LA OM5090URL	625 nm	5000 mlm	50 mA	5.5 mm	50 / 90 °	☞
LA RM40URL	625 nm	5000 mlm	50 mA	5.5 mm	40 °	☞
LA RM120URL	625 nm	5000 mlm	50 mA	5.5 mm	120 °	☞
LA AT020URH	625 nm	1300 lm	1000 mA	32 x 23 mm	20 °	☞
LA RM40DRL	633 nm	4000 mlm	50 mA	5.5 mm	40 °	☞
LA RM120DRL	633 nm	4000 mlm	50 mA	5.5 mm	120 °	☞
LA RM5090DRL	633 nm	4000 mlm	50 mA	5.5 mm	50 / 90 °	☞
LA BM10DRL	633 nm	4000 mlm	50 mA	7 mm	10 °	☞
LA OM5090DRL	633 nm	4000 mlm	50 mA	5.5 mm	50 / 90 °	☞
LA RM10URA	635 nm	40 mW	50 mA	5.5 mm	10 °	☞
LA AT020HRE	660 nm	6000 mW	1000 mA	32 x 23 mm	20 °	☞

Product	Typ. Wavelength	Typ. Brightness	Measurement Current	LED Size	Radiation Angle	Data Sheet
LA BM10URL	625 nm	5000 mlm	50 mA	7 mm	10 °	☞
LA OM5090URL	625 nm	5000 mlm	50 mA	5.5 mm	50 / 90 °	☞
LA RM40URL	625 nm	5000 mlm	50 mA	5.5 mm	40 °	☞
LA RM120URL	625 nm	5000 mlm	50 mA	5.5 mm	120 °	☞
LA AT020URH	625 nm	1300 lm	1000 mA	32 x 23 mm	20 °	☞
LA RM40DRL	633 nm	4000 mlm	50 mA	5.5 mm	40 °	☞
LA RM120DRL	633 nm	4000 mlm	50 mA	5.5 mm	120 °	☞
LA RM5090DRL	633 nm	4000 mlm	50 mA	5.5 mm	50 / 90 °	☞
LA BM10DRL	633 nm	4000 mlm	50 mA	7 mm	10 °	☞
LA OM5090DRL	633 nm	4000 mlm	50 mA	5.5 mm	50 / 90 °	☞
LA RM10URA	635 nm	40 mW	50 mA	5.5 mm	10 °	☞
LA AT020HRE	660 nm	6000 mW	1000 mA	32 x 23 mm	20 °	☞
