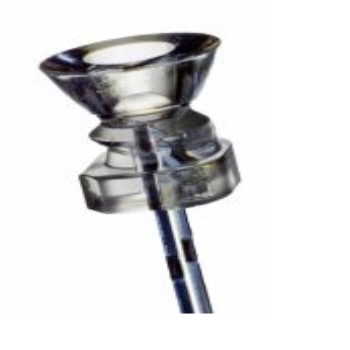

Name: RED ORANGE LED (610 - 625 nm)
Availability: InStock

RED ORANGE LED (610 - 625 nm)

⠀⠀⠀⠀⠀⠀⠀⠀⠀

Features

- Long lifetime

- Extremely small beam width

- High optical precision

- High optical efficiency

- High operating temperatures

Applications

- Industry

- Sensor

- Automotive

- Illumination

- Solid state lighting

Product	Typ. Wavelength	Typ. Brightness	Measurement Current	LED Size	Radiation Angle	Data Sheet
LA BM10ROL	617 nm	6000 mlm	50 mA	7 mm	10 °	☞
LA OM5090ROL	617 nm	6000 mlm	50 mA	5.5 mm	50 / 90 °	☞
LA RM40ROL	617 nm	6000 mlm	50 mA	5.5 mm	40 °	☞
LA RM120ROL	617 nm	6000 mlm	50 mA	5.5 mm	120 °	☞
LA TM120ROA	625 nm	4 mW	20 mA	5.3 mm	120 °	☞

Product	Typ. Wavelength	Typ. Brightness	Measurement Current	LED Size	Radiation Angle	Data Sheet
LA BM10ROL	617 nm	6000 mlm	50 mA	7 mm	10 °	☞
LA OM5090ROL	617 nm	6000 mlm	50 mA	5.5 mm	50 / 90 °	☞
LA RM40ROL	617 nm	6000 mlm	50 mA	5.5 mm	40 °	☞
LA RM120ROL	617 nm	6000 mlm	50 mA	5.5 mm	120 °	☞
LA TM120ROA	625 nm	4 mW	20 mA	5.3 mm	120 °	☞
