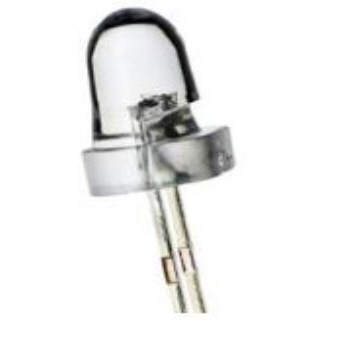

Name: YELLOW LED (555 - 597.5 nm)
Availability: InStock

YELLOW LED (555 - 597.5 nm)

⠀⠀⠀⠀⠀⠀⠀⠀⠀

Features

- Long lifetime

- Extremely small beam width

- High optical precision

- High optical efficiency

- High operating temperatures

Applications

- Industry

- Sensor

- Light grids

- Automotive

Product	Typ. Wavelength	Typ. Brightness	Measurement Current	LED Size	Radiation Angle	Data Sheet
LA RM10YGA	570 nm	3 mW	50 mA	5.5 mm	10 °	☞
LA TM120YGA	570 nm	500 µW	20 mA	5.3 mm	120 °	☞
LA BM10YLL	590 nm	5000 mlm	50 mA	7 mm	10 °	☞
LA OM5090YLL	590 nm	5000 mlm	50 mA	5.5 mm	50 / 90 °	☞
LA RM10YLA	590 nm	15 mW	50 mA	5.5 mm	10 °	☞
LA RM40YLL	590 nm	5000 mlm	50 mA	5.5 mm	40 °	☞
LA RM120YLL	590 nm	5000 mlm	50 mA	5.5 mm	120 °	☞
LA TM120YLA	590 nm	2 mW	20 mA	5.3 mm	120 °	☞
